Norsat International Inc.

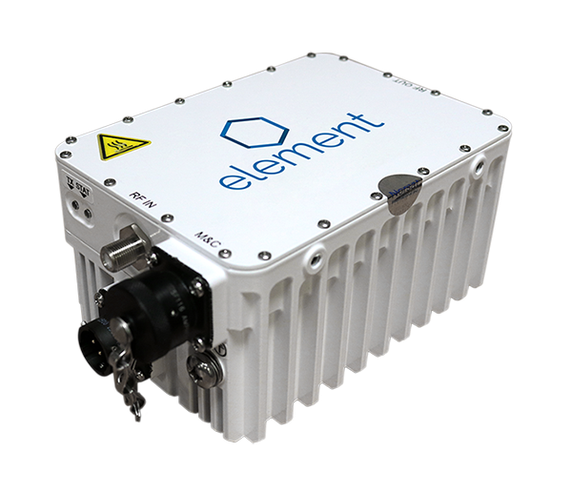

Norsat ELMTBKA012-CF ELEMENT 12W Ka-Band BUC
Product Code:
ELMTBKA012-CF
Condition:
New
Availability:
10 - 12 Weeks
Weight:
1.50 KGS
Width:
10.80
(cm)
Height:
7.80
(cm)
Depth:
16.80
(cm)
$8,887.19
Norsat Satellite Communication solutions are renowned for their high quality, reliability, and innovation. The Ka ELEMENT series offers small size and weight with a variety of frequency options that make it ideal for VSAT applications.
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 950 - 1950 MHz |
| LO Frequency 1 | 28.05 GHz |
| Output Frequency Band 1 | 29.00 - 30.00 GHz |
| Output Power Rated | 12W |
| RF SPECIFICATIONS | |
| Gain Flatness (40Mhz) | ≤ 1.0 dB p-p |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p |
| Gain Flatness (Over Temperature) | ≤ 3.0 dB p-p |
| Input VSWR | 2.0 : 1 max. |
| Linear Gain Max | 70 dB |
| Linear Gain Min | 60 dB |
| Linear Gain Typ | 65 dB |
| Noise Power Density | -70 dBm/Hz in Tx, -157 dBm/Hz in Rx |
| Output P1db | 40.8 dBm min. |
| Output Power Psat | 38 dBm min. |
| Output Spurious In Band | ≤ -55 dBc |
| Output Spurious Out Of Band | ≤ -55 dBc |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise 0.1Khz Offset Max | -73 dBc/Hz |
| Phase Noise 1000Khz Offset Max | -103 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 110W max. |
| Power Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, PT02E-12-4P |
| Power Consumption | 110W max. |
| Power Requirements | +28 to +72V DC |
| Protection Rating | IP55 |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| RF Output Connector | WR-28 waveguide grooved |
| M AND C SPECIFICATIONS | |
| M And C Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 10 Pins, PT02E-12-10P |
| M And C Interface | RS-485 & RS-232 |
| Mute Control | Fully configurable, (mute enable: high: 3.0 - 5.0 V or low: 0.0 - 0.8 V, mute default: enabled or disabled) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 8 - 100% condensing |
| IP Rating | IP 66 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -50 to +70°C |

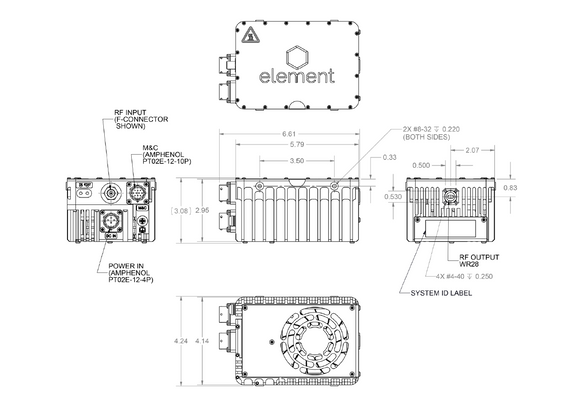

| PHYSICAL SPECIFICATIONS | |
| Enclosed Accessories | Screws, Gasket, Mating Connectors for Power and M&C |
| Product Height | 78 mm |
| Product Length | 168 mm |
| Product Weight | 1.5 kg |
| Product Width | 108 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 1.35 kg |
| Aluminium COO | CA |
| Aluminium Total Value | $ 3.375 |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 254 mm x 226 mm x 178 mm |
| Unit Package Height | 178 mm |
| Unit Package Length | 254 mm |
| Unit Package Width | 226 mm |
| Warranty | 3 years |
5 customers are viewing this product
Details
Norsat Satellite Communication solutions are renowned for their high quality, reliability, and innovation. The Ka ELEMENT series offers small size and weight with a variety of frequency options that make it ideal for VSAT applications.
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 950 - 1950 MHz |
| LO Frequency 1 | 28.05 GHz |
| Output Frequency Band 1 | 29.00 - 30.00 GHz |
| Output Power Rated | 12W |
| RF SPECIFICATIONS | |
| Gain Flatness (40Mhz) | ≤ 1.0 dB p-p |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p |
| Gain Flatness (Over Temperature) | ≤ 3.0 dB p-p |
| Input VSWR | 2.0 : 1 max. |
| Linear Gain Max | 70 dB |
| Linear Gain Min | 60 dB |
| Linear Gain Typ | 65 dB |
| Noise Power Density | -70 dBm/Hz in Tx, -157 dBm/Hz in Rx |
| Output P1db | 40.8 dBm min. |
| Output Power Psat | 38 dBm min. |
| Output Spurious In Band | ≤ -55 dBc |
| Output Spurious Out Of Band | ≤ -55 dBc |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise 0.1Khz Offset Max | -73 dBc/Hz |
| Phase Noise 1000Khz Offset Max | -103 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 110W max. |
| Power Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins, PT02E-12-4P |
| Power Consumption | 110W max. |
| Power Requirements | +28 to +72V DC |
| Protection Rating | IP55 |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| RF Output Connector | WR-28 waveguide grooved |
| M AND C SPECIFICATIONS | |
| M And C Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 10 Pins, PT02E-12-10P |
| M And C Interface | RS-485 & RS-232 |
| Mute Control | Fully configurable, (mute enable: high: 3.0 - 5.0 V or low: 0.0 - 0.8 V, mute default: enabled or disabled) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 8 - 100% condensing |
| IP Rating | IP 66 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -50 to +70°C |
| PHYSICAL SPECIFICATIONS | |
| Enclosed Accessories | Screws, Gasket, Mating Connectors for Power and M&C |
| Product Height | 78 mm |
| Product Length | 168 mm |
| Product Weight | 1.5 kg |
| Product Width | 108 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 1.35 kg |
| Aluminium COO | CA |
| Aluminium Total Value | $ 3.375 |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 254 mm x 226 mm x 178 mm |
| Unit Package Height | 178 mm |
| Unit Package Length | 254 mm |
| Unit Package Width | 226 mm |
| Warranty | 3 years |
Download
| Download Name | |
| Norsat ELMTBKA012-CF 12W Ka-Band BUC Data Sheet | |
