Norsat International Inc.

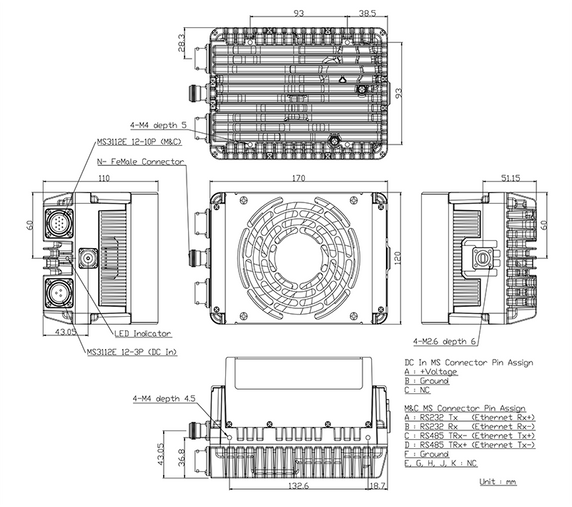

Norsat ELMTBKA007-AN ELEMENT 7W Ka-Band BUC
Product Code:
ELMTBKA007-AN
Condition:
New
Availability:
10 - 12 Weeks
Weight:
2.37 KGS
Width:
12.00
(cm)
Height:
11.00
(cm)
Depth:
17.00
(cm)
$9,875.00
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 950 - 1450 MHz |
| LO Frequency 1 | 28.55 GHz |
| Output Frequency Band 1 | 29.50 - 30.00 GHz |
| Output Power Rated | 7W |
| RF SPECIFICATIONS | |
| Gain Flatness (40Mhz) | ≤ 4.0 dB p-p |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p |
| Gain Flatness (Over Temperature) | ≤ 3.0 dB p-p |
| Input Power | via IFL |
| Input VSWR | 2.0 : 1 max. |
| Linear Gain Max | 70 dB |
| Linear Gain Min | 60 dB |
| Linear Gain Typ | 65 dB |
| Noise Power Density | -70 dBm/Hz in Tx, -157 dBm/Hz in Rx |
| Output P1db | 38.5 dBm min. |
| Output Power Psat | 39 dBm min. |
| Output Spurious In Band | ≤ -60 dBc |
| Output Spurious Out Of Band | ≤ -60 dBc |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise 0.1Khz Offset Max | -65 dBc/Hz |
| Phase Noise 1Khz Offset Max | -75 dBc/Hz |
| Phase Noise 10Khz Offset Max | -85 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | 130W max. |
| Power Requirements | +36 to +60 V DC |
| Protection Rating | IP54 |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| Isolator | No Isolator |
| RF Output Connector | WR28 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 100% condensing |
| IP Rating | IP 54 |
| Temperature Operational | -40°C to +55°C |
| Temperature Storage | -40 to +75°C |
| PHYSICAL SPECIFICATIONS | |
| Enclosed Accessories | Screws, Gasket |
| Product Height | 110 mm |
| Product Length | 170 mm |
| Product Weight | 2.37 kg |
| Product Width | 120 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 1.68 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 4.2 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8543700000 |
| Unit Package Weight | 3.8 kg |
| Warranty | 3 years |
