Norsat International Inc.
Norsat ELMTBKA004IT-CN ELEMENT 4W Ka-Band BUC (High Temperature Range)
Product Code:
ELMTBKA004IT-CN
Condition:
New
Availability:
4 - 6 Weeks
Weight:
1.80 KGS
Width:
16.15
(cm)
Height:
6.50
(cm)
Depth:
17.60
(cm)
$5,824.07
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 950 - 1700 MHz |
| LO Frequency 1 | 28.3 GHz |
| Output Frequency Band 1 | 29.25 - 30.00 GHz |
| Output Power Rated | 4W |
| RF SPECIFICATIONS | |
| Gain Flatness (54Mhz) | ≤ 1.5 dB p-p |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p |
| Gain Flatness (Over Temperature) | ≤ 4.0 dB p-p |
| Input VSWR | 2.0 : 1 max. |
| Linear Gain Max | 63 dB |
| Linear Gain Min | 53 dB |
| Linear Gain Typ | 58 dB |
| Output P1db | 36 dBm min. |
| Output Power Psat | 36.5 dBm min. |
| Output Spurious In Band | ≤ -60 dBc |
| Output Spurious Out Of Band | ≤ -60 dBc |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise 0.1Khz Offset Max | -65 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | 60W max. |
| Power Requirements | +15 to +30 V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| Isolator | With Isolator |
| RF Output Connector | WR28 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 100% condensing |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -40 to +75°C |

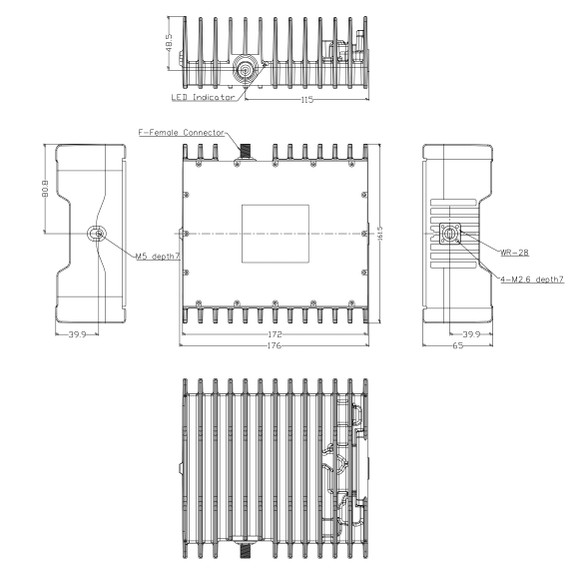

| PHYSICAL SPECIFICATIONS | |
| Enclosed Accessories | Screws, Gasket |
| Product Height | 65 mm |
| Product Length | 176 mm |
| Product Weight | 1.8 kg |
| Product Width | 161.5 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Korea |
| Harmonized System Code | 8543700000 |
| Unit Package Weight | 3.0 kg |
| Warranty | 3 years |
