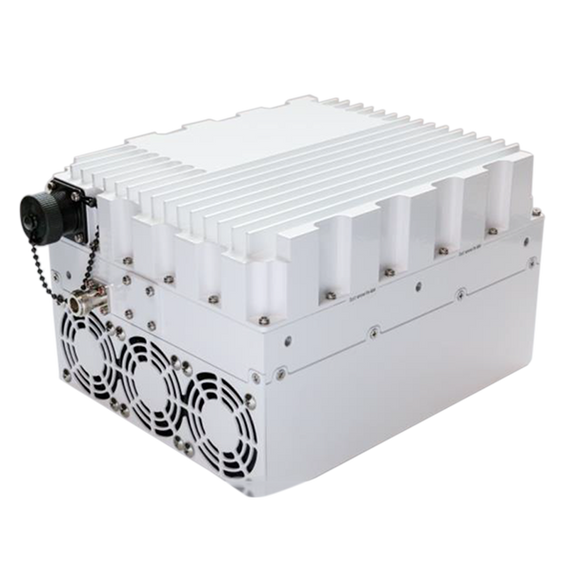

Norsat ELMTBC100HT-PN-AE ELEMENT 100W C-Band BUC (High Temperature Range)
Product Code:
ELMTBC100HT-PN-AE
Condition:
New
Availability:
10 - 12 Weeks
Weight:
8.50 KGS
Width:
19.00
(cm)
Height:
14.50
(cm)
Depth:
23.50
(cm)
$27,890.00
| KEY SPECIFICATIONS | |
| Band | C-Band |
| External Ref Freq | 10 MHz, -5 to +5 dBm |
| Input Frequency Band 1 | 1150 - 1450 MHz |
| LO Frequency 1 | 5.275 GHz |
| Output Frequency Band 1 | 6.425 - 6.725 GHz |
| Output Power Rated | 100W |
| Reference Type | Internal Reference |
| RF SPECIFICATIONS | |
| Gain Flatness (54Mhz) | 1.5 dB |
| Gain Flatness (Over Full Band) | 4 dB |
| Gain Flatness (Over Temperature) | 4 dB |
| Input VSWR | 2 : 1 max. |
| Linear Gain Typ | 80 dB |
| Output P1db Min | +50 dBm over temperature |
| Output Spurious In Band | -60 dBc |
| Output Spurious Out Of Band | -50 dBc |
| Output VSWR | 2 : 1 max. |
| Phase Noise 0.1Khz Offset Max | -65 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 650W max. |
| Power Consumption | 630W max. |
| Power Requirements | +85 to +265V AC |
| INTERFACE SPECIFICATIONS | |
| Frequency Sense | Non-inverted |
| IF Connector | N-Connector |
| M And C Interface | Ethernet |
| M AND C SPECIFICATIONS | |
| Function CMD | HPA On/Off, Gain Control, Address Change |
| Function TLM | Output Power Detection, Out-of-lock Alarm, Temperature, Summary Alarm |
| M And C Interface | Ethernet |
| Mute Control | Via M&C Interface or Disconnection 10MHz Reference |
| Status LED | Bicolor: Red(Abnormal), Green(Normal) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | Up to 100% |
| IP Rating | IP 54 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -40 to +75°C |
| PHYSICAL SPECIFICATIONS | |
| Internal Function | Lock detector shuts off Tx in case of LO unlocked |
| Product Height | 145 mm |
| Product Length | 235 mm |
| Product Weight | 8.5 kg |
| Product Width | 190 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 6.03 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 15.075 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8543700000 |
| Unit Package Dimensions | 290 mm x 270 mm x 250 mm |
| Unit Package Height | 250 mm |
| Unit Package Length | 290 mm |
| Unit Package Weight | 8.5 kg |
| Unit Package Width | 270 mm |
| Warranty | 3 years |
