Norsat International Inc.

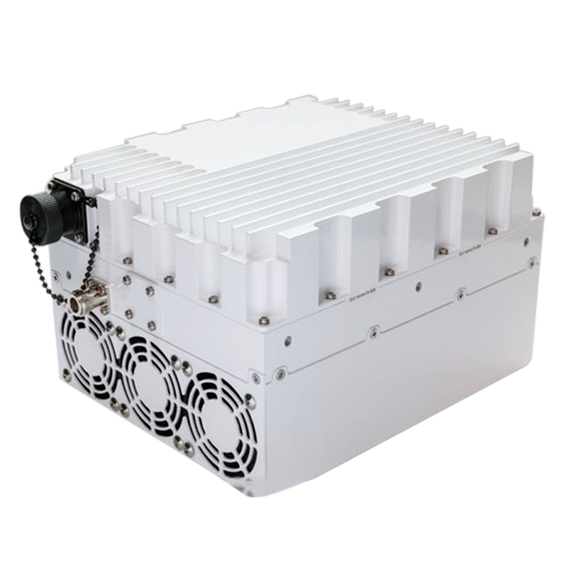

Norsat ELMTBC080HT-SF-A ELEMENT 80W C-Band BUC (High Temperature Range)
Product Code:

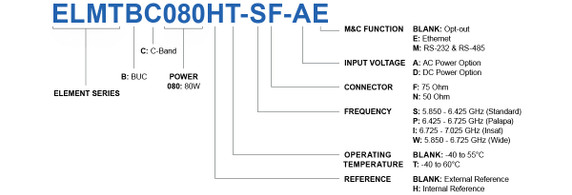

ELMTBC080HT-SF-A
Condition:
New
Availability:
10 - 12 Weeks
Weight:
8.50 KGS
Width:
19.00
(cm)
Height:
14.50
(cm)
Depth:
23.50
(cm)
$24,770.00
| KEY SPECIFICATIONS | |
| Band | C-Band |
| External Ref Freq | 10 MHz, -5 to +5 dBm |
| Input Frequency Band 1 | 950 - 1525 MHz |
| LO Frequency 1 | 4.9 GHz |
| Output Frequency Band 1 | 5.850 - 6.425 GHz |
| Output Power Rated | 80W |
| Reference Type | External Reference |
| RF SPECIFICATIONS | |
| Gain Flatness (54Mhz) | 1.5 dB |
| Gain Flatness (Over Full Band) | 4 dB |
| Gain Flatness (Over Temperature) | 4 dB |
| Input VSWR | 2 : 1 max. |
| Linear Gain Typ | 80 dB |
| Output P1db | +49 dBm min. over temperature |
| Output Spurious In Band | -60 dBc |
| Output Spurious Out Of Band | -50 dBc |
| Output VSWR | 2 : 1 max. |
| Phase Noise 0.1Khz Offset Max | -65 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 650W max. |
| Power Consumption | 630W max. |
| Power Requirements | +85 to +265V AC |
| INTERFACE SPECIFICATIONS | |
| Frequency Sense | Non-inverted |
| IF Connector | F-Connector |
| M And C Interface | No M&C Function |
| M AND C SPECIFICATIONS | |
| M And C Interface | No M&C Function |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | Up to 100% |
| IP Rating | IP 54 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -40 to +75°C |

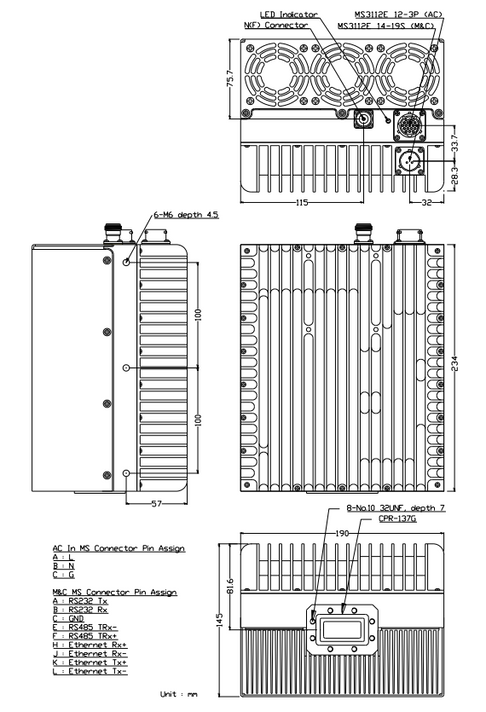

| PHYSICAL SPECIFICATIONS | |
| Internal Function | Lock detector shuts off Tx in case of LO unlocked |
| Product Height | 145 mm |
| Product Length | 235 mm |
| Product Weight | 8.5 kg |
| Product Width | 190 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 6.03 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 15.075 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8543700000 |
| Unit Package Dimensions | 290 mm x 270 mm x 250 mm |
| Unit Package Height | 250 mm |
| Unit Package Length | 290 mm |
| Unit Package Weight | 8.5 kg |
| Unit Package Width | 270 mm |
| Warranty | 3 years |
