Norsat International Inc.

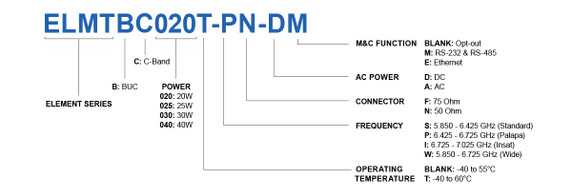

Norsat ELMTBC020T-IF-DE ELEMENT 20W C-Band BUC (High Temperature Range)
Product Code:
ELMTBC020T-IF-DE
Condition:
New
Availability:
10 - 12 Weeks
Weight:
5.00 KGS
Width:
19.60
(cm)
Height:
13.80
(cm)
Depth:
22.00
(cm)
$10,323.46
| KEY SPECIFICATIONS | |
| Band | C-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 975 - 1275 MHz |
| LO Frequency 1 | 5.75 GHz |
| Output Frequency Band 1 | 6.725 - 7.025 GHz |
| Output Power Rated | 20W |
| RF SPECIFICATIONS | |
| Gain Flatness (54Mhz) | ≤ 1.5 dB p-p |
| Gain Flatness (Over Full Band) | ≤ 4.0 dB p-p |
| Gain Flatness (Over Temperature) | ≤ 4.0 dB p-p |
| Input VSWR | 2.0 : 1 max. |
| Linear Gain Max | 74 dB |
| Linear Gain Min | 64 dB |
| Linear Gain Typ | 69 dB |
| Output P1db | 43 dBm min. |
| Output Power Psat | 43.5 dBm min. |
| Output Spurious In Band | ≤ -60 dBc |
| Output Spurious Out Of Band | ≤ -50 dBc |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise 0.1Khz Offset Max | -65 dBc/Hz |
| Phase Noise 1Khz Offset Max | -75 dBc/Hz |
| Phase Noise 10Khz Offset Max | -85 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | 180W max. |
| Power Requirements | +36 to +60V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| RF Output Connector | CPR137G |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | Up to 100% condensing |
| IP Rating | IP 54 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -40 to +75°C |
| PHYSICAL SPECIFICATIONS | |
| Enclosed Accessories | Screws, Gasket |
| Product Height | 138 mm |
| Product Length | 220 mm |
| Product Weight | 5.0 kg |
| Product Width | 196 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 3.55 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 8.875 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8543700000 |
| Unit Package Dimensions | 290 mm x 270 mm x 250 mm |
| Unit Package Height | 250 mm |
| Unit Package Length | 290 mm |
| Unit Package Weight | 8.5 kg |
| Unit Package Width | 270 mm |
| Warranty | 3 years |
