Norsat International Inc.

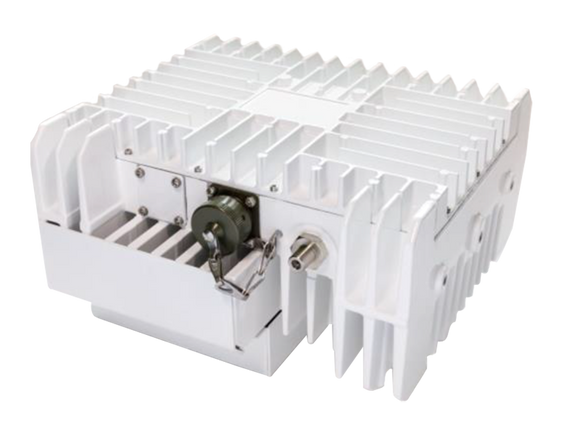

Norsat ELMTBC010-EF-A ELEMENT 10W C-Band BUC

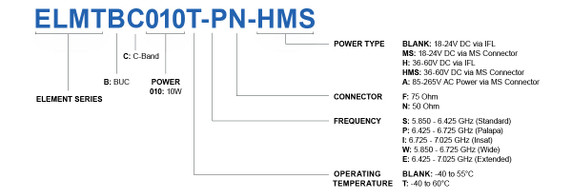

Product Code:
ELMTBC010-EF-A
Condition:
New
Availability:
10 - 12 Weeks
Weight:
5.50 KGS
Width:
19.42
(cm)
Height:
14.93
(cm)
Depth:
22.00
(cm)
$5,550.00
| KEY SPECIFICATIONS | |
| Band | C-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 1150 - 1750 MHz |
| LO Frequency 1 | 5.275 GHz |
| Output Frequency Band 1 | 6.425 - 7.025 GHz |
| Output Power Rated | 10W |
| RF SPECIFICATIONS | |
| Gain Flatness (40Mhz) | ≤ 1.5 dB p-p |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p |
| Gain Flatness (Over Temperature) | ≤ 4.0 dB p-p |
| Input VSWR | 2.0 : 1 max. |
| Linear Gain Max | 70 dB |
| Linear Gain Min | 60 dB |
| Linear Gain Typ | 65 dB |
| Output P1db | 40 dBm min. |
| Output Power Psat | 40.5 dBm min. |
| Output Spurious In Band | ≤ -60 dBc |
| Output Spurious Out Of Band | ≤ -50 dBc |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise 0.1Khz Offset Max | -65 dBc/Hz |
| Phase Noise 1Khz Offset Max | -75 dBc/Hz |
| Phase Noise 10Khz Offset Max | -85 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Input Power | via MS Connector |
| Power Consumption | 100W max. |
| Power Requirements | +85 to +256V AC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| RF Output Connector | CPR137G |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 100% condensing |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |

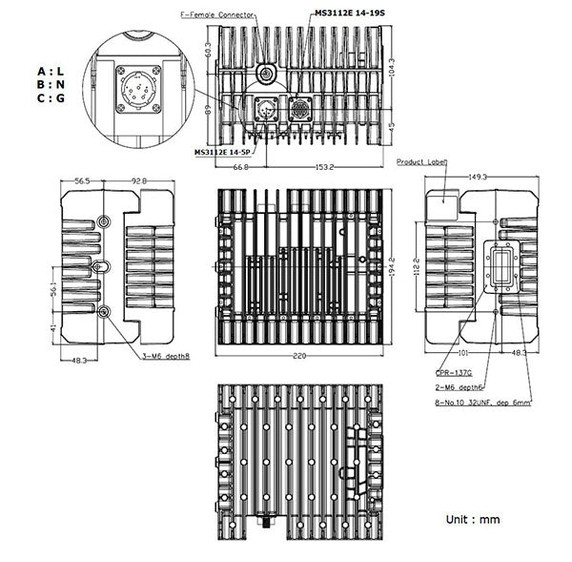

| PHYSICAL SPECIFICATIONS | |
| Enclosed Accessories | Screws, Gasket |
| Product Height | 149.3 mm |
| Product Length | 220 mm |
| Product Weight | 5.5 kg |
| Product Width | 194.2 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 3.19 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 7.975 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8543700000 |
| Unit Package Weight AC | 6.5 kg |
| Unit Package Weight DC | 5.0 kg |
| Warranty | 3 years |
