Norsat International Inc.

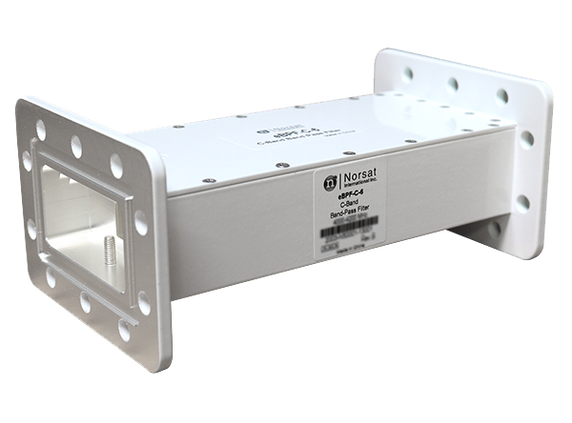

Norsat EBPF-CN-6 C-Band 5G Rejection Extreme Bandpass Filter
Product Code:
EBPF-CN-6
Condition:
New
Availability:
6 - 8 Weeks
Weight:
0.90 KGS
Width:
10.00
(cm)
Height:
7.10
(cm)
Depth:
17.00
(cm)
$1,000.00
Norsat’s C-band interference extreme band pass filter features a broad passband with low insertion loss, steep skirts that roll off quickly and high stopband rejection. eBPF-C Series.
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Group Delay Variation Within 0.5Mhz | 3.0 ns max. |
| Input Frequency Band 1 | 4.00 - 4.20 GHz |

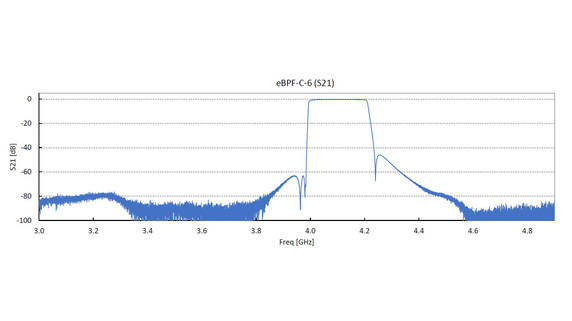

| Rejection | 60 dB min at 3.982 GHz; 25 dB min at 4.230 GHz |
| RF SPECIFICATIONS | |
| Insertion Loss In Band | 1.4 dB max. |
| VSWR | 1.4 :1 max. |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | CPR 229G waveguide grooved |
| RF Output Connector | CPR-229F |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |

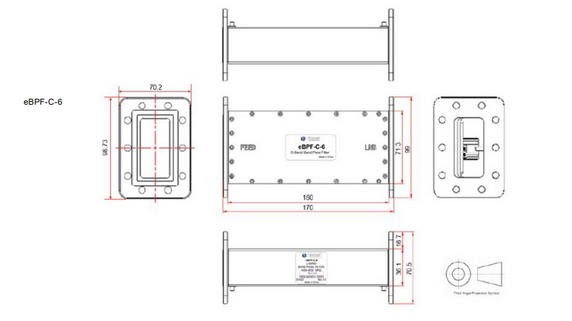

| PHYSICAL SPECIFICATIONS | |
| Product Height | 71 mm |
| Product Length | 170 mm |
| Product Weight | 0.9 kg |
| Product Width | 100 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.84 kg |
| Aluminium Total Value | $ 2.1 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Package Height Case 1 | 115 mm |
| Package Length Case 1 | 270 mm |
| Package Width Case 1 | 140 mm |
| Unit Package Dimensions | 270 x 140 x 115 mm |
| Unit Package Weight | 1.3 kg |
| Warranty | 3 years |
