Norsat International Inc.

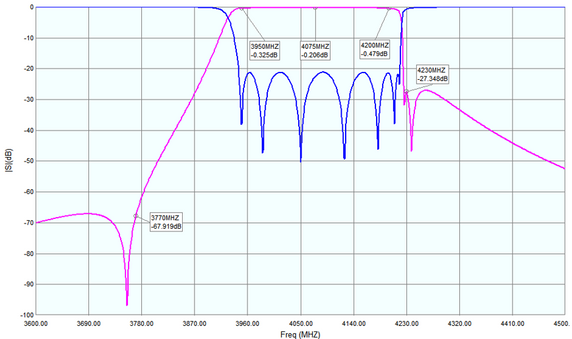

Norsat EBPF-100024 C-Band Extreme Bandpass Filter - DEMO
Product Code:
EBPF-100024
Condition:
New
Availability:
16 pcs
Weight:
0.70 KGS
Width:
9.90
(cm)
Height:
7.10
(cm)
Depth:
12.00
(cm)
$191.00
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Input Frequency Band 1 | 3.95 - 4.20 GHz |
| Product Family | C-Band BPF |
| Rejection | ≥60dB @3400-3770 Mhz ≥25dB @4230-4300 Mhz |
| RF SPECIFICATIONS | |
| Insertion Loss In Band | 0.5 dB max. |
| VSWR | 1.4: 1 max. |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | CPR-229G |
| RF Output Connector | CPR-229F |
| ENVIRONMENTAL SPECIFICATIONS | |
| Barometric Pressure | 55 KPa -106KPa |
| Humidity | 5% - 95% |
| IP Rating | IP67 |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -25°C to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Product Height | 71 mm |
| Product Length | 120 mm |
| Product Weight | 0.7 kg |
| Product Width | 99 mm |
| ADDITIONAL INFORMATION | |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Input Frequency Band 1 | 3.95 - 4.20 GHz |
| Product Family | C-Band BPF |
| Rejection | ≥60dB @3400-3770 Mhz ≥25dB @4230-4300 Mhz |
| RF SPECIFICATIONS | |
| Insertion Loss In Band | 0.5 dB max. |
| VSWR | 1.4: 1 max. |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | CPR-229G |
| RF Output Connector | CPR-229F |
| ENVIRONMENTAL SPECIFICATIONS | |
| Barometric Pressure | 55 KPa -106KPa |
| Humidity | 5% - 95% |
| IP Rating | IP67 |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -25°C to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Product Height | 71 mm |
| Product Length | 120 mm |
| Product Weight | 0.7 kg |
| Product Width | 99 mm |
| ADDITIONAL INFORMATION | |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
