Norsat International Inc.

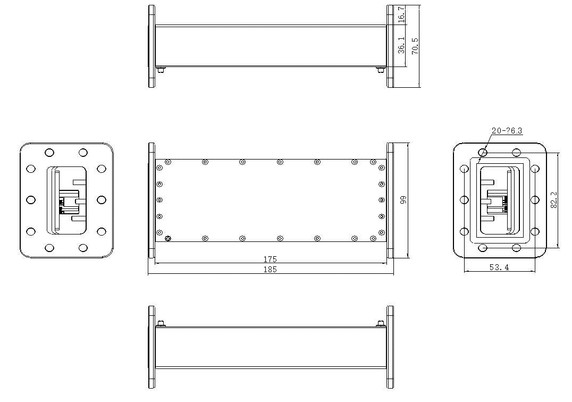

Norsat EBPF-100014 C-Band Extreme Bandpass Filter
Product Code:
EBPF-100014
Condition:
New
Availability:
10 - 12 Weeks
Weight:
1.00 KGS
Width:
9.90
(cm)
Height:
7.00
(cm)
Depth:
15.90
(cm)
$0.00
C-Band Extreme Bandpass Filter,3.95 to 4.2GHz,60dB rejection at 3.932GHz,25dB rejection at 4.23GHz
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Input Frequency Band 1 | 3.95 - 4.20 GHz |
| Rejection | ≥60dB @2990-3932 Mhz ≥25dB @4230-4990 Mhz |
| RF SPECIFICATIONS | |
| Group Delay Variation | ≤3ns within ± 0.5 MHz of any frequency within the passband |
| Insertion Loss In Band | 1.4db max. |
| VSWR | 1.4: 1 max. |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | CPR-229G |
| RF Output Connector | CPR-229F |
| ENVIRONMENTAL SPECIFICATIONS | |
| Barometric Pressure | 55 KPa -106KPa |
| Humidity | 5% - 95% |
| IP Rating | IP67 |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Product Height | 70 mm |
| Product Length | 159 mm |
| Product Weight | 1.0 kg |
| Product Width | 99 mm |
| ADDITIONAL INFORMATION | |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Unit Package Dimensions | 185 x 99 x 70.5 mm |
| Unit Package Height | 70.5 mm |
| Unit Package Length | 185 mm |
| Unit Package Width | 99 mm |
5 customers are viewing this product
Details
C-Band Extreme Bandpass Filter,3.95 to 4.2GHz,60dB rejection at 3.932GHz,25dB rejection at 4.23GHz
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Input Frequency Band 1 | 3.95 - 4.20 GHz |
| Rejection | ≥60dB @2990-3932 Mhz ≥25dB @4230-4990 Mhz |
| RF SPECIFICATIONS | |
| Group Delay Variation | ≤3ns within ± 0.5 MHz of any frequency within the passband |
| Insertion Loss In Band | 1.4db max. |
| VSWR | 1.4: 1 max. |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | CPR-229G |
| RF Output Connector | CPR-229F |
| ENVIRONMENTAL SPECIFICATIONS | |
| Barometric Pressure | 55 KPa -106KPa |
| Humidity | 5% - 95% |
| IP Rating | IP67 |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Product Height | 70 mm |
| Product Length | 159 mm |
| Product Weight | 1.0 kg |
| Product Width | 99 mm |
| ADDITIONAL INFORMATION | |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Unit Package Dimensions | 185 x 99 x 70.5 mm |
| Unit Package Height | 70.5 mm |
| Unit Package Length | 185 mm |
| Unit Package Width | 99 mm |
