Norsat International Inc.

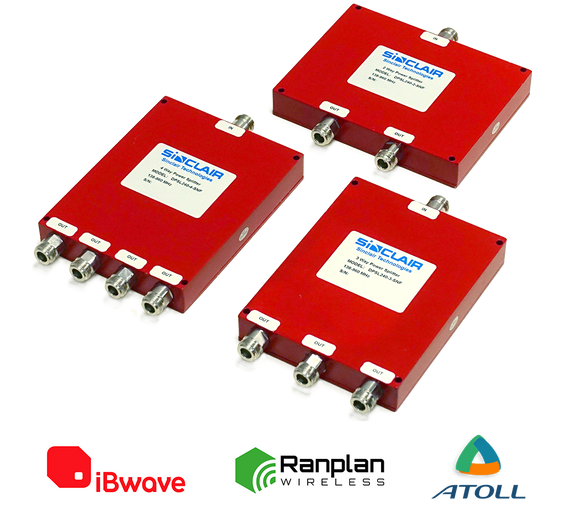

Norsat DPSL240-4-SNF Power Splitter, 138-960 MHz, 2/3/4 Way
Product Code:
DPSL240-4-SNF
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
$562.50
• Rugged construction for public safety DAS application
• Wide band that covers all public safety bands (VHF, UHF, and 700/800/900 MHz)
• Outstanding electrical performance for optimal reception and clear voice
• Proud partner of the iBwave Component Database
• Wide band that covers all public safety bands (VHF, UHF, and 700/800/900 MHz)
• Outstanding electrical performance for optimal reception and clear voice
• Proud partner of the iBwave Component Database
| KEY SPECIFICATIONS | |
| DAS Components Type | Power Splitter |
| ELECTRICAL SPECIFICATIONS | |
| Average Power Input Max (W) | 50 |
| Connectors | N-Female |
| Frequency Range (Mhz) | 138 - 960 |
| Impedance (Ω) | 50 |
| Peak Input Power Max (W) | 200 |
| VSWR Max | 1.3 : 1 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Application | Indoor |
| Operating Humidity Range (%) | 5 to 95 |
| Operating Temperature Range (°C) | -35 to 65 |
| PHYSICAL SPECIFICATIONS | |
| Color | Red |
| Diameter (In) | - |
| Length/Height (In) | 6.22 |
| Thickness (In) | 0.94 |
| Weight (Lbs) | 2 |
| Width (In) | 4.8 |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.9 kg |
| Aluminium Total Value | $ 2.25 |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Aurora, Ontario, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 15 in x 6.25 in x 2.75 in |
| Unit Package Height | 2.75 in |
| Unit Package Length | 15 in |
| Unit Package Weight | 3.3 lbs |
| Unit Package Width | 6.25 in |
| Warranty | 2 years |
