Norsat International Inc.

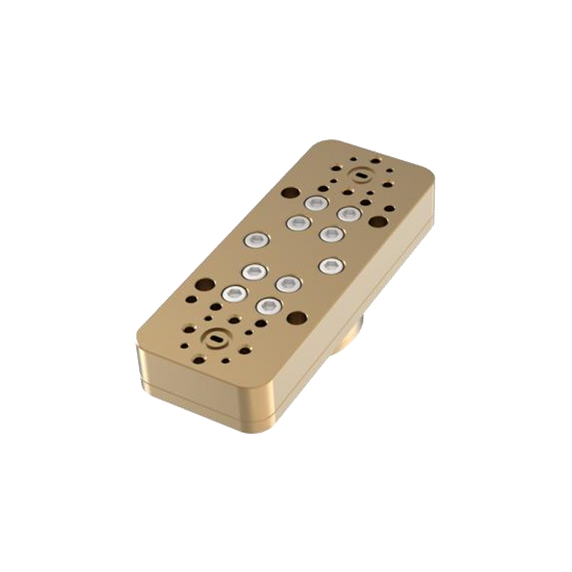

Norsat DIP020E Waveguide E-Band Diplexer
Product Code:
DIP020E
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
Width:
3.40
(cm)
Height:
2.08
(cm)
Depth:
8.68
(cm)
$4,373.00
| KEY SPECIFICATIONS | |
| Band | E-Band |
| Bandwith | 5 GHz |
| Frequency | 71 - 76 GHz; 81 - 86 GHz |
| Product Family | Diplexer |
| Rejection | ≥ 70 dB |
| RF SPECIFICATIONS | |
| Gain Ripple | ≤ 0.6 dB |
| Input VSWR | ≤ 1.5 : 1 |
| Insertion Loss | ≤ 1.0 dB |
| ELECTRICAL SPECIFICATIONS | |
| Impedance | 50 Ω |
| INTERFACE SPECIFICATIONS | |
| Connectors Type | WR10 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Indoor Status | Indoor |
| Temperature Operational | -40°C to +75°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 20.76 mm |
| Product Length | 86.83 mm |
| Product Width | 34 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ |
| Country Of Origin | Made in Thailand |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517799000 |
| Unit Package Dimensions | 117 x 61 x 54 mm |
| Unit Package Height | 54 mm |
| Unit Package Length | 117 mm |
| Unit Package Weight | 0.05 kg |
| Unit Package Width | 61 mm |
| Warranty | 3 years |
