Norsat International Inc.
Norsat CUE102NCNSMNCNSM-030 Ultra Flexible Low Loss Phase Stable Cable 18 GHz - N Straight Male Connector
Product Code:
CUE102NCNSMNCNSM-030
Condition:
New
Availability:
1 - 2 Weeks
Weight:
0.00 KGS
$2,071.00
| KEY SPECIFICATIONS | |
| Cable Length | 30 m |
| Frequency Range | DC-18GHz |
| Jacket Size | 8mm |
| Material Flexibility | Ultra-flexible |
| Phase Stability | Mechanical |
| Velocity Of Propagation | 76% Typ. |
| RF SPECIFICATIONS | |
| Amplitude Stability Vs Flexure | ±0.1 dB Typ.@18GHz |
| Cable Insertion Loss | 30.6 dB |
| Capacitance | 2430 pF Max. |
| Phase Stability Vs Flesure | ±8° Typ.@18GHz |
| Phase Stability Vs Temprature | 550PPM Max. |
| Shielding Effectiveness | 90 dB Min. |
| VSWR Max | 1.3:1 |
| VSWR Typ | 1.25:1 |
| ELECTRICAL SPECIFICATIONS | |
| Cable RF Power Cw | 254W max.@18GHz |
| INTERFACE SPECIFICATIONS | |
| Connector 1 | N Straight Male |
| Connector 1 Body Material And Plating | Passivated Stainless Steel |
| Connector 1 Contact Material And Plating | Brass, Gold |
| Connector 1 Dielectric Type | PTFE |
| Connector 1 Insertion Loss | 0.05*Sqrt(f_GHz) |
| Connector 2 | N Straight Male |
| Connector 2 Body Material And Plating | Passivated Stainless Steel |
| Connector 2 Contact Material And Plating | Brass, Gold |
| Connector 2 Dielectric Type | PTFE |
| Connector 2 Insertion Loss | 0.05*Sqrt(f_GHz) |
| PHYSICAL SPECIFICATIONS | |

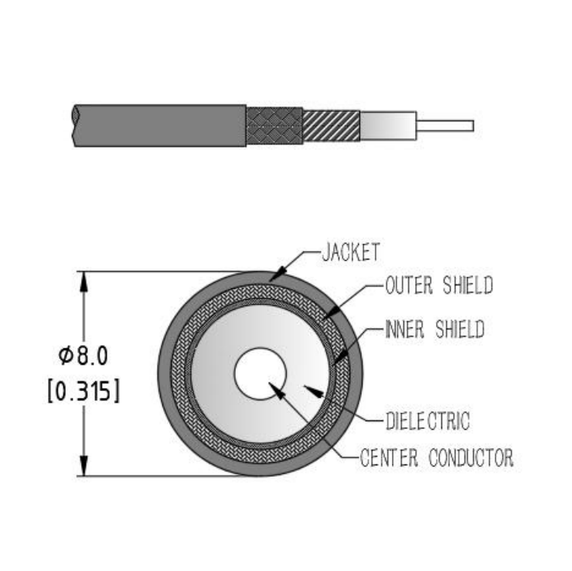

| Cable Diameter | 8.0 mm |
| Cable Jacket | PUR |
| Min Bending Life | 50000 |
| Min Bending Radius | 32 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8544200000 |
| Warranty | 1 year |
