Norsat International Inc.

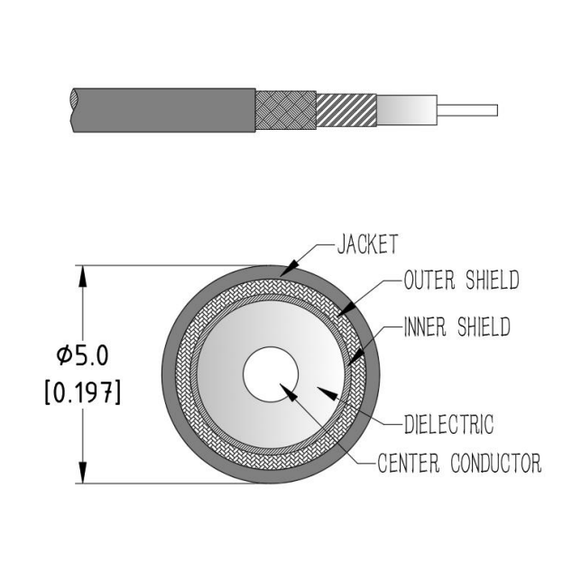

Norsat CUC139TNCSMTNCSM-005 Ultra Flexible Low Loss Phase Stable Cable 10 - 26.5 GHz - TNC Straight Male Connector
Product Code:
CUC139TNCSMTNCSM-005
Condition:
New
Availability:
1 - 2 Weeks
Weight:
0.00 KGS
$384.00
| KEY SPECIFICATIONS | |
| Cable Length | 5 m |
| Frequency Range | DC-10GHz |
| Jacket Size | 5mm |
| Material Flexibility | Ultra-flexible |
| Phase Stability | Mechanical |
| Velocity Of Propagation | 76% Typ. |
| RF SPECIFICATIONS | |
| Amplitude Stability Vs Flexure | ±0.03 dB Typ.@10GHz |
| Cable Insertion Loss | 6.95 dB |
| Capacitance | 405 pF Max. |
| Phase Stability Vs Flesure | ±2° Typ.@10GHz |
| Phase Stability Vs Temprature | 1000PPM Typ. |
| Shielding Effectiveness | 90 dB Min. |
| VSWR Max | 1.25:1 |
| VSWR Typ | 1.20:1 |
| ELECTRICAL SPECIFICATIONS | |
| Cable RF Power Cw | 46W max.@10GHz |
| INTERFACE SPECIFICATIONS | |
| Connector 1 | TNC Straight Male |
| Connector 1 Body Material And Plating | Passivated Stainless Steel |
| Connector 1 Contact Material And Plating | Brass, Gold |
| Connector 1 Dielectric Type | PTFE |
| Connector 1 Insertion Loss | 0.05*Sqrt(f_GHz) |
| Connector 2 | TNC Straight Male |
| Connector 2 Body Material And Plating | Passivated Stainless Steel |
| Connector 2 Contact Material And Plating | Brass, Gold |
| Connector 2 Dielectric Type | PTFE |
| Connector 2 Insertion Loss | 0.05*Sqrt(f_GHz) |
| PHYSICAL SPECIFICATIONS | |
| Cable Diameter | 5.0 mm |
| Cable Jacket | PUR |
| Min Bending Life | 50000 |
| Min Bending Radius | 20 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8544200000 |
| Warranty | 1 year |
