Norsat International Inc.

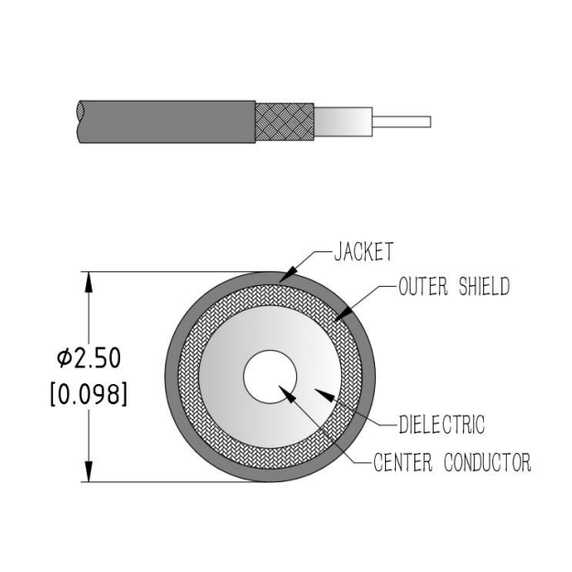

Norsat CSH571SMPSFSMPSF-030 Semi-Flexible Cable 3 - 40 GHz - SMP Straight Female Connector
Product Code:
CSH571SMPSFSMPSF-030
Condition:
New
Availability:
1 - 2 Weeks
Weight:
0.00 KGS
$688.00
| KEY SPECIFICATIONS | |
| Cable Length | 30 m |
| Frequency Range | DC-40GHz |
| Jacket Size | 2.5mm |
| Material Flexibility | Semi-flexible |
| Velocity Of Propagation | 70% Typ. |
| RF SPECIFICATIONS | |
| Cable Insertion Loss | 171.3 dB |
| Capacitance | 2430 pF Max. |
| Shielding Effectiveness | 90 dB Min. |
| VSWR Max | 1.4:1 |
| VSWR Typ | 1.35:1 |
| ELECTRICAL SPECIFICATIONS | |
| Cable RF Power Cw | 12W max.@40GHz |
| INTERFACE SPECIFICATIONS | |
| Connector 1 | SMP Straight Female |
| Connector 1 Body Material And Plating | Beryllium Copper, Gold |
| Connector 1 Contact Material And Plating | Beryllium Copper, Gold |
| Connector 1 Dielectric Type | PTFE |
| Connector 1 Insertion Loss | 0.05*Sqrt(f_GHz) |
| Connector 2 | SMP Straight Female |
| Connector 2 Body Material And Plating | Beryllium Copper, Gold |
| Connector 2 Contact Material And Plating | Beryllium Copper, Gold |
| Connector 2 Dielectric Type | PTFE |
| Connector 2 Insertion Loss | 0.05*Sqrt(f_GHz) |
| PHYSICAL SPECIFICATIONS | |
| Cable Diameter | 2.5 mm |
| Cable Jacket | FEP |
| Min Bending Life | 50000 |
| Min Bending Radius | 11 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8544200000 |
| Warranty | 1 year |
