Norsat International Inc.
Norsat CPJ645185SM185SF-200 High Precision RF Microwave Test Cable 67 GHz - 1.85mm Straight Male Connector
Product Code:
CPJ645185SM185SF-200
Condition:
New
Availability:
1 - 2 Weeks
Weight:
0.00 KGS
$25,225.00
| KEY SPECIFICATIONS | |
| Cable Length | 200 m |
| Frequency Range | DC-67GHz |
| Jacket Size | 4.65 mm |
| Phase Stability | Mechanical |
| Velocity Of Propagation | 76% Typ. |
| RF SPECIFICATIONS | |
| Amplitude Stability Vs Flexure | ±0.04 dB Typ.@67GHz |
| Cable Insertion Loss | 1290 dB |
| Capacitance | 17400 pF Max. |
| Phase Stability Vs Flesure | ±5° Typ.@67GHz |
| Shielding Effectiveness | 90 dB Min. |
| VSWR Max | 1.30:1 |
| VSWR Typ | 1.20:1 |
| ELECTRICAL SPECIFICATIONS | |
| Cable RF Power Cw | 15W max.@67GHz |
| INTERFACE SPECIFICATIONS | |
| Connector 1 | 1.85mm Straight Male |
| Connector 1 Body Material And Plating | Passivated Stainless Steel |
| Connector 1 Contact Material And Plating | Beryllium Copper, Gold |
| Connector 1 Dielectric Type | PEI |
| Connector 1 Insertion Loss | 0.05*Sqrt(f_GHz) |
| Connector 2 | 1.85mm Straight Female |
| Connector 2 Body Material And Plating | Passivated Stainless Steel |
| Connector 2 Contact Material And Plating | Beryllium Copper, Gold |
| Connector 2 Dielectric Type | PEI |
| Connector 2 Insertion Loss | 0.05*Sqrt(f_GHz) |
| PHYSICAL SPECIFICATIONS | |

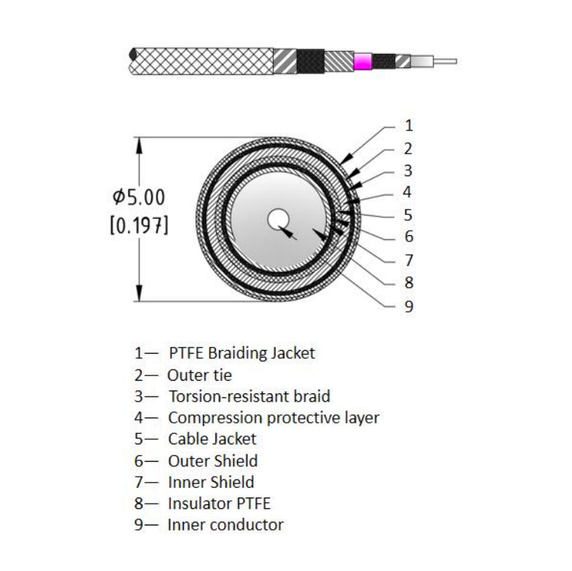

| Cable Diameter | 5.0 mm |
| Cable Jacket | PTFE |
| Min Bending Life | 50000 |
| Min Bending Radius | 38 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8544200000 |
| Warranty | 1 year |
