Norsat International Inc.

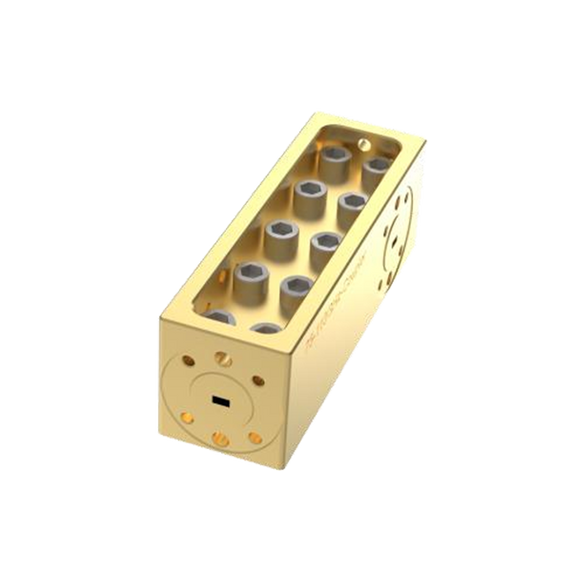

Norsat COU030W Waveguide Coupler
Product Code:
COU030W
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
Width:
2.08
(cm)
Height:
1.90
(cm)
Depth:
6.00
(cm)
$1,962.00
| KEY SPECIFICATIONS | |
| Band | W-Band |
| Frequency | 75 - 110 GHz |
| Product Family | Coupler |
| RF SPECIFICATIONS | |
| Input VSWR | ≤ 1.5 : 1 |
| Insertion Loss | ≤ 0.3 dB |
| Isolation | ≥ 45 dB |
| ELECTRICAL SPECIFICATIONS | |
| Coupling | 30dB ± 1 dB |
| Impedance | 50 Ω |
| INTERFACE SPECIFICATIONS | |
| Connectors Type | WR10 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Indoor Status | Indoor |
| Temperature Operational | -40°C to +75°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 19 mm |
| Product Length | 60 mm |
| Product Width | 20.8 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in Thailand |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517799000 |
| Unit Package Dimensions | 90 x 52 x 48 mm |
| Unit Package Height | 48 mm |
| Unit Package Length | 90 mm |
| Unit Package Weight | 0.04 kg |
| Unit Package Width | 52 mm |
| Warranty | 3 years |
