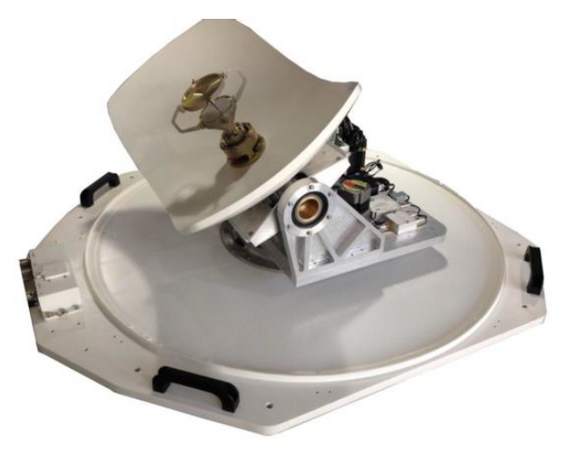

Norsat COTM-100028 WAYFARER 0.55m Ku-Band Communications-on-the-Move Antenna
Product Code:
COTM-100028
Condition:
New
Availability:
10 - 12 Weeks
Weight:
52.00 KGS
$0.00
| KEY SPECIFICATIONS | |
| Antenna Aperture | 0.50m |
| Antenna Category | On the Move |
| Band | Ku-Band |
| Reflector Material | Carbon Fiber |
| ANTENNA SPECIFICATIONS | |
| Antenna Type | Low Profile Parabolic |
| Auto Acquisition | Initial acquisition satellite time: ≤ 3min |
| Azimuth Acceleration | ≥ 200°/s² |
| Azimuth Speed | ≤ 60°/s |
| Cross Polarization Isolation | 30 dB, On Axis |
| Elevation Acceleration | ≥ 200°/s² |
| Elevation Speed | ≤ 60°/s |
| Insertion Loss Radome | ≤ 0.3 dB |
| Motion Range AZ | 360° unlimited |
| Motion Range EL | 5° - 90° |
| Motion Range POL | ± 90° |
| Polarization | Linear |
| Polarization Speed | ≤ 40°/s |
| Satellite Time | Blockage recovery time: ≤ 5s; Blockage: 20min |
| Sidelobe | AZ: ≤ -14 dB (first side lobe) |
| Tracking Accuracy | ≤ 0.5 dB (R.M.S.) |
| RF SPECIFICATIONS | |
| Port Isolation Tx-Rx | 85 dB |
| Power Capacity | 100 W |
| Rx Frequency | 10.95 - 11.45 GHz |
| Rx Gain | 32.4+20lg(f/10.85GHz) dBi |
| Rx Interface | N-50K |
| Rx VSWR | 1.5：1 |
| Tx Frequency | 12.75 - 13.25 GHz |
| Tx Gain | 34.0+20lg(f/13.0GHz) dBi |
| Tx Interface | WR75 |
| Tx VSWR | 1.5：1 |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | ≤ 300W (Excluding BUC) |
| Power Supply | 220V AC, 50Hz |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0-95% |
| Temperature Operational | -40℃ to +55℃ |
| Temperature Storage | -50℃ to +70℃ |
| Windspeed Operational | 21 m/s |
| Windspeed Survival | 35 m/s |
| PHYSICAL SPECIFICATIONS | |
| Color | White |
| Product Weight | ≤ 52 kg (excluding BUC, LNB, packaging and accessories) |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8517710000 |
