Norsat International Inc.

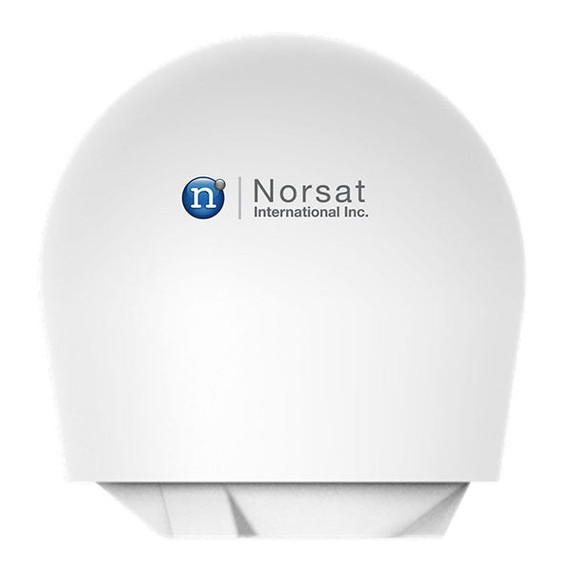

Norsat COM120KUL MarineLink 1.2m Low Ku-Band Maritime Antenna

Name: Norsat COM120KUL MarineLink 1.2m Low Ku-Band Maritime Antenna
Brand: Norsat International Inc.
SKU: COM120KUL
Price: 96300 USD
Availability: InStock

No reviews yet

Product Code: COM120KUL

Condition: New

Availability: 10 - 12 Weeks

Weight: 150.00 KGS

$96,300.00

KEY SPECIFICATIONS
Antenna Category	On the Move
Band	Ku-Band
Of Onboard Los	Single-Band
ANTENNA SPECIFICATIONS
Antenna Aperture	1.2 m
Antenna Type	Ring Focus
Auto Acquisition Time	≤ 3min
Azimuth Acceleration	200°/s²
Azimuth Velocity	≤ 60°/s
Blockage Recovery Time	≤ 5s (Blockage 20min)
Cross Polarization Isolation	35 dB
Elevation Acceleration	200°/s²
Elevation Veolcity	≤ 60°/s
Motion Range AZ	360° continuous
Motion Range EL	-15° - 125°
Motion Range POL	± 90°
Polarization	Linear
Polarization Acceleration	≤ 40°/s
Polarization Velocity	≤ 40°/s
Sidelobe	AZ: ≤ -14dB (first side lobe)
RF SPECIFICATIONS
Port Isolation Rx-Tx	85 dB
Port Isolation Tx-Rx	85 dB
Power Capacity	100 W
Rx Frequency	10.70 - 11.70 GHz
Rx Gain	41.5+20lg(f/11.2) dBi
Rx Interface	N-50K
Rx VSWR	1.5
Tx Frequency	12.75 - 13.25 GHz
Tx Gain	42.7+20lg(f/13.0) dBi
Tx Interface	WR75
Tx VSWR	1.5
ELECTRICAL SPECIFICATIONS
Power Consumption	≤400W (excluding BUC)
Power Supply	220 VAC, 50 Hz
INTERFACE SPECIFICATIONS
Positioning Mode	GPS+BD
ENVIRONMENTAL SPECIFICATIONS
Humidity	0 - 95%
IP Rating	IP65
Temperature Operational	-40°C to +55°C
Windspeed Operational	21m/s
Windspeed Survival	35m/s
PHYSICAL SPECIFICATIONS
Color	White
Default Cable (Included)	Communication cables, Power supply cables, RF cables, Electrical power cables
Default Cable Length	10m
Product Weight	≤ 150 kg (excluding BUC, LNB, case, packaging and accessories etc)
RMS	≤ 0.5 dB (R.M.S)
ADDITIONAL INFORMATION
Country Of Origin	Made in China
ECCN Number	EAR99
Ex Works	Hong Kong
Harmonized System Code	8529109090
Warranty	1 year
