Norsat International Inc.

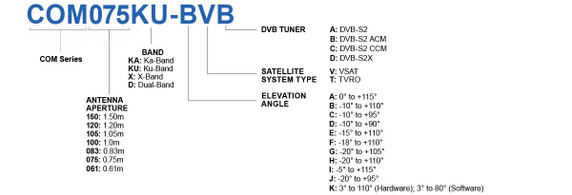

Norsat COM120KU-BVD MarineLink 1.2m Ku-Band Maritime Antenna DVB-S2X

Name: Norsat COM120KU-BVD MarineLink 1.2m Ku-Band Maritime Antenna DVB-S2X
Brand: Norsat International Inc.
SKU: COM120KU-BVD
Price: 37400 USD
Availability: InStock

No reviews yet

Product Code: COM120KU-BVD

Condition: New

Availability: 10 - 12 Weeks

Weight: 131.00 KGS

$37,400.00

ANTENNA SPECIFICATIONS
ACU Size	19" Rack 1U size
Angle Display Resolution	0.1 degrees
Angle Display Range Cross	±35°
Angle Display Range Elevation	-10° to +110°
Angle Display Range Elevation Azimuth	Unlimited
Antenna Aperture	1.2 m
Antenna Drive Mode	Auto Tracking
Antenna Input Power	48V DC, 11.4A
Antenna Type	KA-190
Auto Acquisition	Yes
Auto Acquistion Time	5 minutes Max.
Azimuth Range	Unlimited
Azimuth Speed	10º/sec
Cross Angle	±35º
Cross Polarization Isolation	35dB
Dish Diameter	1.2 M
Elevation Range	-10° to +110°
Elevation Speed	10º/sec
Encoder Accuracy AZ	0.01º
External I/O	Mini-USB, USB, Ethernet, Console, AUX, RS-232C, RS-422
Feed Configuration	Ring focus
Gyro Interface	NMEA 0183, Synchro, Step by Step
Motion Range AZ	±8˚ at 15-20 sec periods
Motion Range EL	±14˚ at 6-12 sec periods
Motion Range POL	±24˚ at 8-12 sec periods
Operating Platform	3-Axis
Polarization	Linear
Polarization Range	±90º
Polarization Speed	5º/sec
Preset Satellite	80 satellites
Ship Motion Pitch	±14˚ at 6-12 sec periods
Ship Motion Roll	±24˚ at 8-12 sec periods
Ship Motion Yaw	±8˚ at 15-20 sec periods
Skew Control	Automatic
Standard BUC Options	8 W
Standard LNB Options	Universal LNB
RF SPECIFICATIONS
G/T	20.33 dB/K (in Radome) @ 30deg. Elevation angle and 11.75 GHz, Clear Sky
LNB Reference Type	Internal
Rx Frequency	10.7 - 12.75 GHz
Tx Frequency	13.75 - 14.5 GHz
INTERFACE SPECIFICATIONS
Dvb Tuner	DVB-S2X
Openbmip	Yes
ENVIRONMENTAL SPECIFICATIONS
Humidity	Up to 100% @ 40°C
Temperature Operational	-20°C to +55°C
Temperature Survival	-20°C to +55°C
PHYSICAL SPECIFICATIONS
Product Dimensions Height	1630 mm
Product Dimensions Length	1610 mm
Product Dimensions Width	1610 mm
Product Weight	131 kg
ADDITIONAL INFORMATION
Aluminium Content	65.5 kg
Aluminium COO	KR
Aluminium Total Value	$163.75
Country Of Origin	Made in Republic of Korea
Ex Works	Hong Kong
Harmonized System Code	8529109100
Number Of Packages	1
Unit Package Dimensions Height	1900 mm
Unit Package Dimensions Length	1740 mm
Unit Package Dimensions Width	1740 mm
Unit Package Weight	269 kg
Warranty	1 year
