Norsat International Inc.

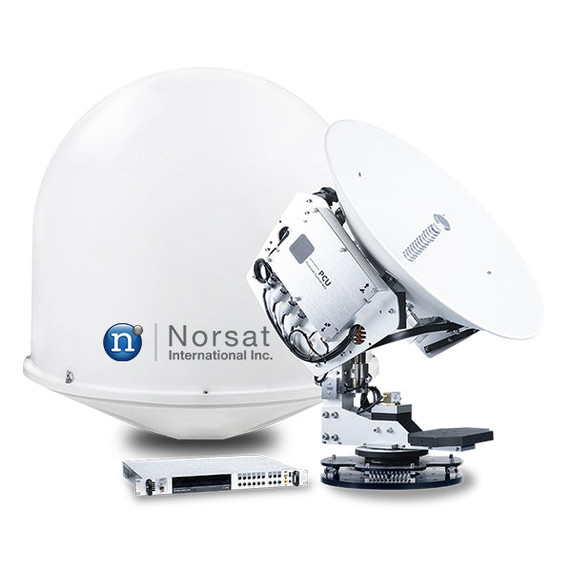

Norsat COM075KU-BVB MarineLink 0.75m Ku-Band Maritime Antenna DVB-S2 ACM
Product Code:
COM075KU-BVB
Condition:
New
Availability:
10 - 12 Weeks
Weight:
86.00 KGS
$56,400.00
| ANTENNA SPECIFICATIONS | |
| ACU Size | 19" Rack 1U size |
| Angle Display Resolution | 0.1 degrees |
| Angle Display Range Cross | ±35° |
| Angle Display Range Elevation | -10° to +110° |
| Angle Display Range Elevation Azimuth | Unlimited |
| Antenna Aperture | 0.75 m |
| Antenna Drive Mode | Auto Tracking |
| Antenna Input Power | 48V DC, 10.4A |
| Antenna Type | KA-180 |
| Auto Acquisition | Yes |
| Auto Acquistion Time | 5 minutes Max. |
| Azimuth Range | Unlimited |
| Azimuth Speed | 10º/sec |
| Cross Angle | ±35º |
| Cross Polarization Isolation | 35dB |
| Dish Diameter | 0.75 M |
| Elevation Range | -10° to +110° |
| Elevation Speed | 10º/sec |
| Encoder Accuracy AZ | 0.01º |
| External I/O | Mini-USB, USB, Ethernet, Console, AUX, RS-232C, RS-422, EMCON, RF Connector (N or F-type, Option) |
| Feed Configuration | Ring focus |
| Gyro Interface | NMEA 2000, NMEA 0183, Synchro, Step by Step |
| Motion Range AZ | ±8˚ at 15-20 sec periods |
| Motion Range EL | ±14˚ at 6-12 sec periods |
| Motion Range POL | ±24˚ at 8-12 sec periods |
| Operating Platform | 3-Axis |
| Polarization | Linear |
| Polarization Range | ±90º |
| Polarization Speed | 5º/sec |
| Preset Satellite | 80 satellites |
| Ship Motion Pitch | ±14˚ at 6-12 sec periods |
| Ship Motion Roll | ±24˚ at 8-12 sec periods |
| Ship Motion Yaw | ±8˚ at 15-20 sec periods |
| Skew Control | Automatic |
| Standard BUC Options | 8 W |
| Standard LNB Options | Universal LNB |
| RF SPECIFICATIONS | |
| G/T | 16.76 dB/K (in Radome) @ 30deg. Elevation angle and 11.75 GHz, Clear Sky |
| LNB Reference Type | Internal |
| Rx Frequency | 10.7 - 12.75 GHz |
| Tx Frequency | 13.75 - 14.5 GHz |
| INTERFACE SPECIFICATIONS | |
| Dvb Tuner | DVB-S2 ACM |
| Openbmip | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | Up to 100% @ 40°C |
| Temperature Operational | -20°C to +55°C |
| Temperature Survival | -20°C to +55°C |
| PHYSICAL SPECIFICATIONS | |
| Product Dimensions Height | 1170 mm |
| Product Dimensions Length | 1130 mm |
| Product Dimensions Width | 1130 mm |
| Product Weight | 86 kg |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 43 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $107.5 |
| Country Of Origin | Made in Republic of Korea |
| Ex Works | Hong Kong |
| Harmonized System Code | 8529109100 |
| Number Of Packages | 1 |
| Unit Package Dimensions Height | 1600 mm |
| Unit Package Dimensions Length | 1280 mm |
| Unit Package Dimensions Width | 1280 mm |
| Unit Package Weight | 170 kg |
| Warranty | 1 year |
5 customers are viewing this product
Details
| ANTENNA SPECIFICATIONS | |
| ACU Size | 19" Rack 1U size |
| Angle Display Resolution | 0.1 degrees |
| Angle Display Range Cross | ±35° |
| Angle Display Range Elevation | -10° to +110° |
| Angle Display Range Elevation Azimuth | Unlimited |
| Antenna Aperture | 0.75 m |
| Antenna Drive Mode | Auto Tracking |
| Antenna Input Power | 48V DC, 10.4A |
| Antenna Type | KA-180 |
| Auto Acquisition | Yes |
| Auto Acquistion Time | 5 minutes Max. |
| Azimuth Range | Unlimited |
| Azimuth Speed | 10º/sec |
| Cross Angle | ±35º |
| Cross Polarization Isolation | 35dB |
| Dish Diameter | 0.75 M |
| Elevation Range | -10° to +110° |
| Elevation Speed | 10º/sec |
| Encoder Accuracy AZ | 0.01º |
| External I/O | Mini-USB, USB, Ethernet, Console, AUX, RS-232C, RS-422, EMCON, RF Connector (N or F-type, Option) |
| Feed Configuration | Ring focus |
| Gyro Interface | NMEA 2000, NMEA 0183, Synchro, Step by Step |
| Motion Range AZ | ±8˚ at 15-20 sec periods |
| Motion Range EL | ±14˚ at 6-12 sec periods |
| Motion Range POL | ±24˚ at 8-12 sec periods |
| Operating Platform | 3-Axis |
| Polarization | Linear |
| Polarization Range | ±90º |
| Polarization Speed | 5º/sec |
| Preset Satellite | 80 satellites |
| Ship Motion Pitch | ±14˚ at 6-12 sec periods |
| Ship Motion Roll | ±24˚ at 8-12 sec periods |
| Ship Motion Yaw | ±8˚ at 15-20 sec periods |
| Skew Control | Automatic |
| Standard BUC Options | 8 W |
| Standard LNB Options | Universal LNB |
| RF SPECIFICATIONS | |
| G/T | 16.76 dB/K (in Radome) @ 30deg. Elevation angle and 11.75 GHz, Clear Sky |
| LNB Reference Type | Internal |
| Rx Frequency | 10.7 - 12.75 GHz |
| Tx Frequency | 13.75 - 14.5 GHz |
| INTERFACE SPECIFICATIONS | |
| Dvb Tuner | DVB-S2 ACM |
| Openbmip | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | Up to 100% @ 40°C |
| Temperature Operational | -20°C to +55°C |
| Temperature Survival | -20°C to +55°C |
| PHYSICAL SPECIFICATIONS | |
| Product Dimensions Height | 1170 mm |
| Product Dimensions Length | 1130 mm |
| Product Dimensions Width | 1130 mm |
| Product Weight | 86 kg |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 43 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $107.5 |
| Country Of Origin | Made in Republic of Korea |
| Ex Works | Hong Kong |
| Harmonized System Code | 8529109100 |
| Number Of Packages | 1 |
| Unit Package Dimensions Height | 1600 mm |
| Unit Package Dimensions Length | 1280 mm |
| Unit Package Dimensions Width | 1280 mm |
| Unit Package Weight | 170 kg |
| Warranty | 1 year |
