            Norsat International Inc.

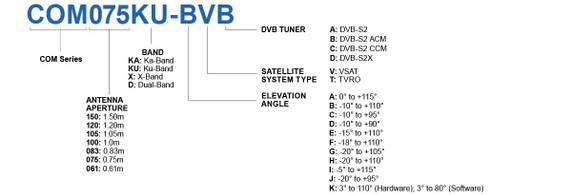

| ANTENNA SPECIFICATIONS | |
| ACU Size | 19" Rack 1U size |
| Angle Display Resolution | 0.1 degrees |
| Angle Display Range Cross | ±30° |
| Angle Display Range Elevation | -20° to +95° |
| Angle Display Range Elevation Azimuth | Unlimited |
| Antenna Aperture | 0.45 m |
| Antenna Drive Mode | Auto Tracking |
| Antenna Input Power | 48V DC, 11.4A |
| Antenna Type | KA-190 |
| Auto Acquisition | Yes |
| Auto Acquistion Time | 5 minutes Max. |
| Azimuth Range | Unlimited |
| Azimuth Speed | 10º/sec |
| Cross Angle | ±35º |
| Cross Polarization Isolation | 35dB |
| Dish Diameter | 0.45 M |
| Elevation Range | -20° to +95° |
| Elevation Speed | 10º/sec |
| Encoder Accuracy AZ | 0.01º |
| External I/O | Mini-USB, USB, Ethernet, Console, AUX, RS-232C, RS-422 |
| Feed Configuration | Ring focus |
| Gyro Interface | NMEA 0183, Synchro, Step by Step |
| Motion Range AZ | ±8° at 15-20 sec periods |
| Motion Range EL | ±10° at 6-12 sec periods |
| Motion Range POL | ±20° at 8-12 sec periods |
| Operating Platform | 3-Axis |
| Polarization | Linear |
| Polarization Range | ±90º |
| Polarization Speed | 5º/sec |
| Preset Satellite | 80 satellites |
| Ship Motion Pitch | ±10° at 6-12 sec periods |
| Ship Motion Roll | ±20° at 8-12 sec periods |
| Ship Motion Yaw | ±8° at 15-20 sec periods |
| Skew Control | Automatic |
| Standard BUC Options | 6 W |
| Standard LNB Options | Universal LNB |
| RF SPECIFICATIONS | |
| G/T | 12.3 dB/K (in Radome) @ 30deg. Elevation angle and 11.75 GHz, Clear Sky |
| LNB Reference Type | Internal |
| Rx Frequency | 10.7 - 12.75 GHz |
| Tx Frequency | 13.75 - 14.5 GHz |
| INTERFACE SPECIFICATIONS | |
| Dvb Tuner | DVB-S2X |
| Openbmip | Yes |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | Up to 100% @ 40°C |
| Temperature Operational | -20°C to +55°C |
| Temperature Survival | -20°C to +55°C |
| PHYSICAL SPECIFICATIONS | |
| Product Dimensions Height | 650 mm |
| Product Dimensions Length | 660 mm |
| Product Dimensions Width | 660 mm |
| Product Weight | 41 kg |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 20.5 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $51.25 |
| Country Of Origin | Made in Republic of Korea |
| Ex Works | Hong Kong |
| Harmonized System Code | 8529109100 |
| Number Of Packages | 1 |
| Unit Package Dimensions Height | 940 mm |
| Unit Package Dimensions Length | 780 mm |
| Unit Package Dimensions Width | 780 mm |
| Unit Package Weight | 52 kg |
| Warranty | 1 year |
