Norsat International Inc.

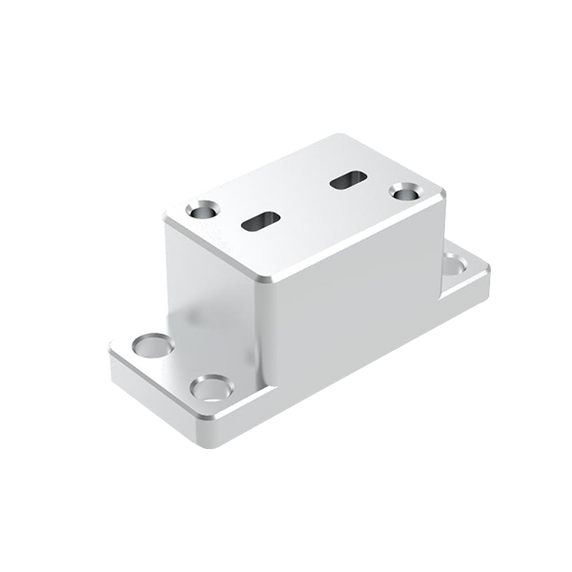

Norsat CIR010AW Waveguide W-Band Circulator
Product Code:
CIR010AW
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
Width:
1.00
(cm)
Height:
1.05
(cm)
Depth:
2.40
(cm)
$3,431.00
| KEY SPECIFICATIONS | |
| Band | W-Band |
| Bandwith | 6 GHz |
| Frequency | 90 - 96 GHz |
| Product Family | Circulator |
| RF SPECIFICATIONS | |
| Gain Ripple | ≤ 0.6 dB |
| Input VSWR | ≤ 1.5 : 1 |
| Insertion Loss | ≤ 1.0 dB |
| Isolation | ≥ 18 dB |
| ELECTRICAL SPECIFICATIONS | |
| Impedance | 50 Ω |
| Power Handling Avg | 10W |
| ENVIRONMENTAL SPECIFICATIONS | |
| Indoor Status | Indoor |
| Temperature Operational | -40°C to +75°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 10.5 mm |
| Product Length | 24 mm |
| Product Width | 10 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0 kg |
| Aluminium Total Value | $ 0 |
| Country Of Origin | Made in Thailand |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517799000 |
| Unit Package Dimensions | 54 x 37 x 43 mm |
| Unit Package Height | 43 mm |
| Unit Package Length | 54 mm |
| Unit Package Weight | 0.005 kg |
| Unit Package Width | 37 mm |
| Warranty | 3 years |
