Norsat International Inc.

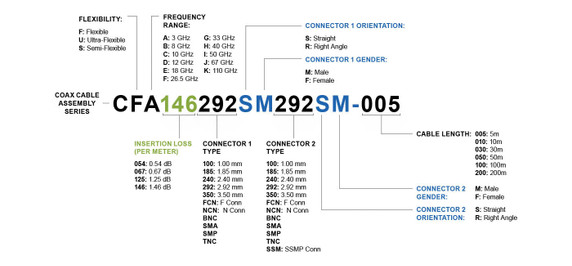

Norsat CFK123100SM100SM-100 High Performance Phase Stable Flexible Cable 26.5 - 110 GHz - 1.0mm Straight Male Connector
Product Code:
CFK123100SM100SM-100
Condition:
New
Availability:
1 - 2 Weeks
Weight:
0.00 KGS
$42,917.00
| KEY SPECIFICATIONS | |
| Cable Length | 100 m |
| Frequency Range | DC-110GHz |
| Jacket Size | 1.54mm |
| Material Flexibility | Flexible |
| Phase Stability | Mechanical and Temperature |
| Velocity Of Propagation | 80% Typ. |
| RF SPECIFICATIONS | |
| Amplitude Stability Vs Flexure | ±0.08 dB Typ.@110GHz |
| Cable Insertion Loss | 1230 dB |
| Capacitance | 8100 pF Max. |
| Phase Stability Vs Flesure | ±8° Typ.@110GHz |
| Shielding Effectiveness | 90 dB Min. |
| VSWR Max | 1.4:1 |
| VSWR Typ | 1.25:1 |
| ELECTRICAL SPECIFICATIONS | |
| Cable RF Power Cw | 3W max.@110GHz |
| INTERFACE SPECIFICATIONS | |
| Connector 1 | 1.0mm Straight Male |
| Connector 1 Body Material And Plating | Passivated Stainless Steel |
| Connector 1 Contact Material And Plating | Beryllium Copper, Gold |
| Connector 1 Dielectric Type | PTFE |
| Connector 1 Insertion Loss | 0.05*Sqrt(f_GHz) |
| Connector 2 | 1.0mm Straight Male |
| Connector 2 Body Material And Plating | Passivated Stainless Steel |
| Connector 2 Contact Material And Plating | Beryllium Copper, Gold |
| Connector 2 Dielectric Type | PTFE |
| Connector 2 Insertion Loss | 0.05*Sqrt(f_GHz) |
| PHYSICAL SPECIFICATIONS | |
| Cable Diameter | 1.54mm |
| Cable Jacket | FEP |
| Min Bending Life | 50000 |
| Min Bending Radius | 6 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8544200000 |
| Warranty | 1 year |
