Norsat International Inc.

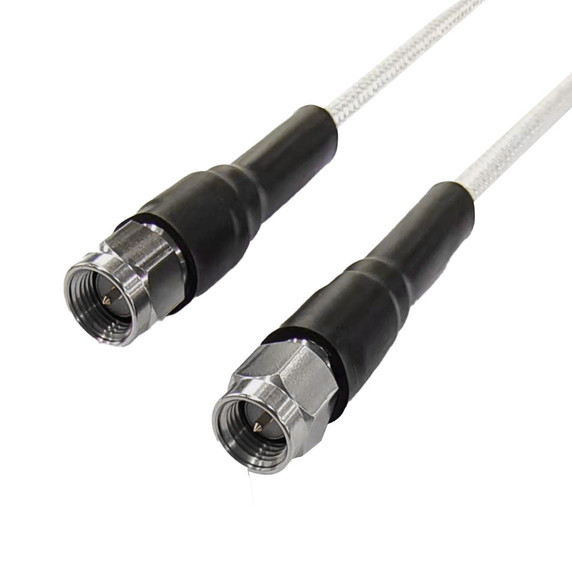

Norsat CFF195SMASMSMASM-200 Low Loss Phase Stable Cable 12 - 26.5 GHz - SMA Straight Male Connector
Product Code:
CFF195SMASMSMASM-200
Condition:
New
Availability:
1 - 2 Weeks
Weight:
0.00 KGS
$8,396.00
| KEY SPECIFICATIONS | |
| Cable Length | 200 m |
| Frequency Range | DC-26.5GHz |
| Jacket Size | 4.6 mm |
| Material Flexibility | Flexible |
| Phase Stability | Mechanical |
| Velocity Of Propagation | 76% Typ. |
| RF SPECIFICATIONS | |
| Amplitude Stability Vs Flexure | ±0.03 dB Typ.@26.5GHz |
| Cable Insertion Loss | 390 dB |
| Capacitance | 17540 pF Max. |
| Phase Stability Vs Flesure | ±3° Typ.@26.5GHz |
| Phase Stability Vs Temprature | 1000PPM Typ. |
| Shielding Effectiveness | 90 dB Min. |
| VSWR Max | 1.3:1 |
| VSWR Typ | 1.25:1 |
| ELECTRICAL SPECIFICATIONS | |
| Cable RF Power Cw | 103W max.@26.5GHz |
| INTERFACE SPECIFICATIONS | |
| Connector 1 | SMA Straight Male |
| Connector 1 Body Material And Plating | Passivated Stainless Steel |
| Connector 1 Contact Material And Plating | Brass, Gold |
| Connector 1 Dielectric Type | PTFE |
| Connector 1 Insertion Loss | 0.05*Sqrt(f_GHz) |
| Connector 2 | SMA Straight Male |
| Connector 2 Body Material And Plating | Passivated Stainless Steel |
| Connector 2 Contact Material And Plating | Brass, Gold |
| Connector 2 Dielectric Type | PTFE |
| Connector 2 Insertion Loss | 0.05*Sqrt(f_GHz) |
| PHYSICAL SPECIFICATIONS | |
| Cable Diameter | 4.6mm |
| Cable Jacket | FEP |
| Min Bending Life | 50000 |
| Min Bending Radius | 23 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8544200000 |
| Warranty | 1 year |
