Norsat International Inc.

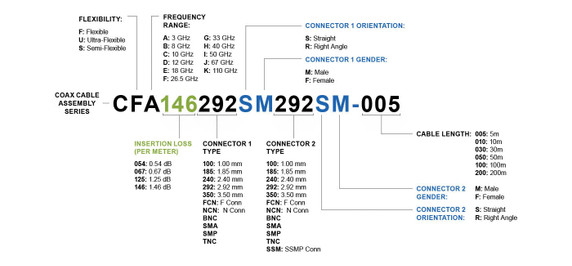

Norsat CFB067NCNSMTNCSM-005 High Performance Phase Stable Flexible Cable 8 - 26.5 GHz - N Straight Male Connector
Product Code:
CFB067NCNSMTNCSM-005
Condition:
New
Availability:
1 - 2 Weeks
Weight:
0.00 KGS
$363.00
| KEY SPECIFICATIONS | |
| Cable Length | 5 m |
| Frequency Range | DC-8GHz |
| Jacket Size | 5.1mm |
| Material Flexibility | Flexible |
| Phase Stability | Mechanical and Temperature |
| Velocity Of Propagation | 83% Typ. |
| RF SPECIFICATIONS | |
| Amplitude Stability Vs Flexure | ±0.02 dB Typ.@8GHz |
| Cable Insertion Loss | 3.35 dB |
| Capacitance | 400 pF Max. |
| Phase Stability Vs Flesure | ±1° Typ.@8GHz |
| Phase Stability Vs Temprature | 550PPM Max. |
| Shielding Effectiveness | 90 dB Min. |
| VSWR Max | 1.25:1 |
| VSWR Typ | 1.2:1 |
| ELECTRICAL SPECIFICATIONS | |
| Cable RF Power Cw | 302W max. |
| INTERFACE SPECIFICATIONS | |
| Connector 1 | N Straight Male |
| Connector 1 Body Material And Plating | Passivated Stainless Steel |
| Connector 1 Contact Material And Plating | Brass, Gold |
| Connector 1 Dielectric Type | PTFE |
| Connector 1 Insertion Loss | 0.05*Sqrt(f_GHz) |
| Connector 2 | TNC Straight Male |
| Connector 2 Body Material And Plating | Passivated Stainless Steel |
| Connector 2 Contact Material And Plating | Brass, Gold |
| Connector 2 Dielectric Type | PTFE |
| Connector 2 Insertion Loss | 0.05*Sqrt(f_GHz) |
| PHYSICAL SPECIFICATIONS | |
| Cable Diameter | 5.1 mm |
| Cable Jacket | FEP |
| Min Bending Life | 50000 |
| Min Bending Radius | 26 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Hong Kong |
| Harmonized System Code | 8544200000 |
| Warranty | 1 year |
