Norsat International Inc.
Norsat BDC-3000XSD-10S 3000 Single Band C-Band EXT REF BDC

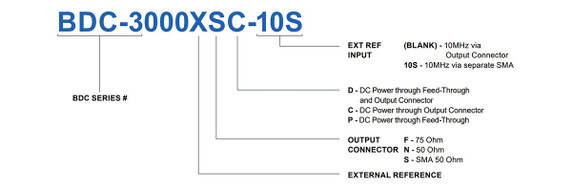

Product Code:
BDC-3000XSD-10S
Condition:
New
Availability:
6 - 8 Weeks
Weight:
0.57 KGS
Width:
9.40
(cm)
Height:
4.60
(cm)
Depth:
10.80
(cm)
$1,760.00
Norsat’s Block Downconverters (BDCs) provide high performance signal conversion for satellite communication.
| KEY SPECIFICATIONS | |
| Band | C-Band |

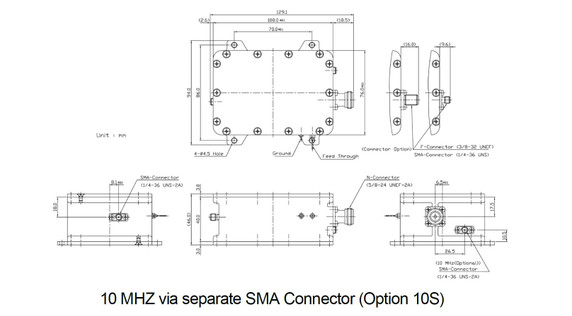

| External Ref Freq | 10 MHz (sine-wave), -10 to 0 dBm, via Separate SMA Connector |
| Input Frequency Band 1 | 3.40 - 4.20 GHz |
| LO Frequency 1 | 5.15 GHz |
| LO Stability | Ext Ref |
| Noise Figure | 10 dB max. at room temp. |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 1750 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 42 dB |
| Conversion Gain Min | 38 dB |
| Conversion Gain Typ | 40 dB |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p |
| Input VSWR | 2.0 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise SSB Max | Depends on External Reference |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 350 mA max. |
| Input Power | via Feed-Through and Output Connector |
| Power Requirements | +12 to +24 VDC |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | S: SMA 50 Ohm |
| RF Output Connector | S: SMA 50 Ohm |
| M AND C SPECIFICATIONS | |
| Input Power Port | DC Power via Feed-Through & Output Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -40 to +80°C |

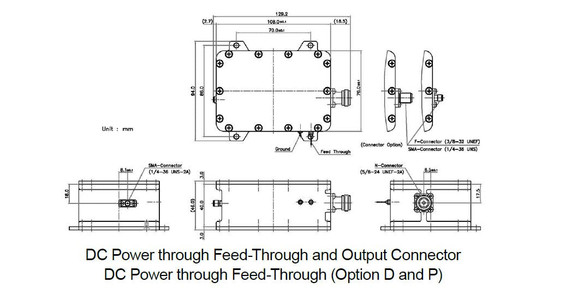

| PHYSICAL SPECIFICATIONS | |
| Product Height | 46 mm |
| Product Length | 108 mm |
| Product Weight | 0.565 kg |
| Product Width | 94 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.457 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 1.1425 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 190 mm x 115 mm x 75 mm |
| Unit Package Height | 75 mm |
| Unit Package Length | 190 mm |
| Unit Package Weight | 0.573 kg |
| Unit Package Width | 115 mm |
| Warranty | 3 years |
