Norsat International Inc.
Norsat 3000 Series BDC-3000XNP-10S C-Band Single-band BDC
Product Code:
BDC-3000XNP-10S
Availability:
YES
Weight:
0.70 KGS
Width:
9.40
(cm)
Height:
4.60
(cm)
Depth:
12.90
(cm)
$1,760.00
Norsats Block Downconverters (BDCs) provide high performance signal conversion for satellite communication.
| KEY SPECIFICATIONS | |
| Product Family | 3000 Series |
| Band | C-Band |
| # of onboard LOs | Single-band |
| LO Stability | Phase Locked to External Reference at 10MHz |
| Noise Figure | 10 dB |
| Input Frequency - Band 1 | C-Band: 3.40 - 4.20 GHz |
| Output Frequency 1 | L-Band: 950 - 1750 MHz |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 5.15 GHz |
| Phase Noise @ 1KHz offset | Depends on External Reference |
| Phase Noise @ 10KHz offset | Depends on External Reference |
| Phase Noise @ 100KHz offset | Depends on External Reference |
| Conversion Gain | 40 dB typ., 38 dB min., 42 dB max. |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 2.0 : 1 |
| Output P1dB compression point | 5 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 12 - 24 V |
| Current Drain | 300 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | SMA |
| RF Output Connector | N-50 Ohm |
| M & C SPECIFICATIONS | |
| Input Power Port | DC Power via Feed-Through |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Temperature - Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |

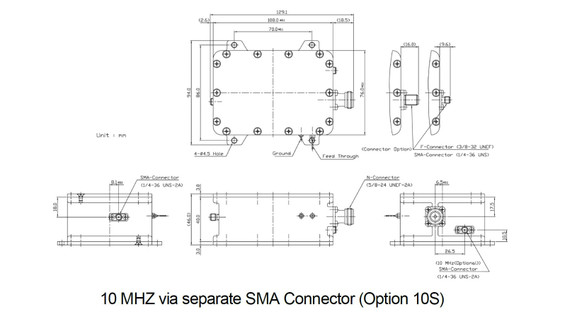

| Dimensions (L x W x H) | 129 x 94 x 46 mm |
| Weight | 700 g |
5 customers are viewing this product
Details
Norsats Block Downconverters (BDCs) provide high performance signal conversion for satellite communication.
| KEY SPECIFICATIONS | |
| Product Family | 3000 Series |
| Band | C-Band |
| # of onboard LOs | Single-band |
| LO Stability | Phase Locked to External Reference at 10MHz |
| Noise Figure | 10 dB |
| Input Frequency - Band 1 | C-Band: 3.40 - 4.20 GHz |
| Output Frequency 1 | L-Band: 950 - 1750 MHz |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 5.15 GHz |
| Phase Noise @ 1KHz offset | Depends on External Reference |
| Phase Noise @ 10KHz offset | Depends on External Reference |
| Phase Noise @ 100KHz offset | Depends on External Reference |
| Conversion Gain | 40 dB typ., 38 dB min., 42 dB max. |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 2.0 : 1 |
| Output P1dB compression point | 5 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 12 - 24 V |
| Current Drain | 300 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | SMA |
| RF Output Connector | N-50 Ohm |
| M & C SPECIFICATIONS | |
| Input Power Port | DC Power via Feed-Through |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Temperature - Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 129 x 94 x 46 mm |
| Weight | 700 g |
