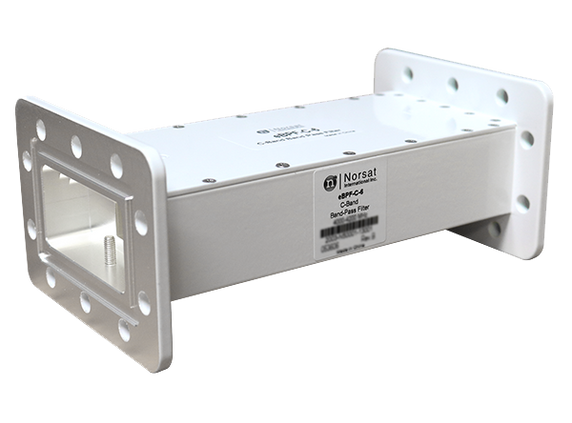

Norsat C-Band eBPF-C-6 Extreme Bandpass Filter

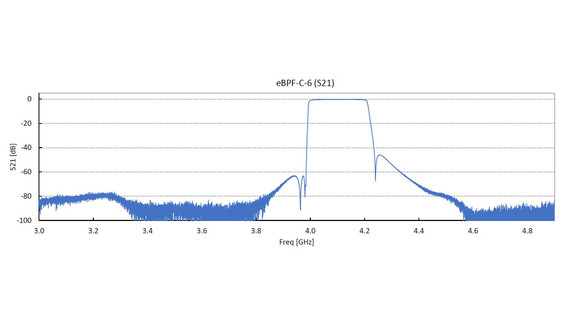

Norsat’s C-band interference extreme band pass filter features a broad passband with low insertion loss, steep skirts that roll off quickly and high stopband rejection. eBPF-C Series.
KEY SPECIFICATIONS |
|
Band |
C-Band |
Input Frequency Band 1 |
C-Band: 4.00 - 4.20 GHz |
RF SPECIFICATIONS |
|
Output VSWR |
1.4 : 1 |
INTERFACE SPECIFICATIONS |
|
RF Input Connector |
CPR 229G waveguide grooved |
RF Output Connector |
CPR-229F |
PHYSICAL SPECIFICATIONS |
|

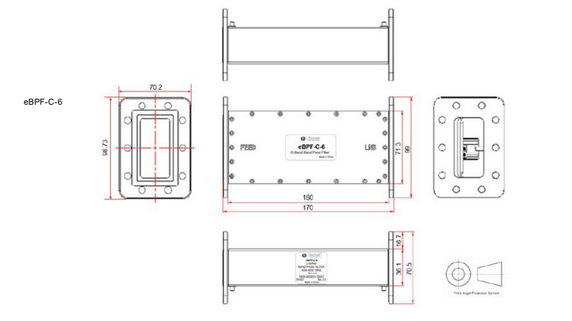

Dimensions (LxWxH) |
185 x 100 x 71 mm |
