Norsat International Inc.
Norsat BUC-ELMTC010-PF ELEMENT 10W C-Band BUC
Product Code:
BUC-ELMTC010-PF
Condition:
New
Availability:
10 - 12 Weeks
Weight:
4.50 KGS
Width:
19.42
(cm)
Height:
10.35
(cm)
Depth:
22.00
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Band | C-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 1150 - 1450 MHz |
| LO Frequency 1 | 5.275 GHz |
| Output Frequency Band 1 | 6.425 - 6.725 GHz |
| Output Power Rated | 10W |
| RF SPECIFICATIONS | |
| Gain Flatness (40Mhz) | ≤ 1.5 dB p-p |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p |
| Gain Flatness (Over Temperature) | ≤ 4.0 dB p-p |
| Input VSWR | 2.0 : 1 max. |
| Linear Gain Typ | 65 dB |
| Output P1db | +40 dBm min. over temperature |
| Output Spurious In Band | ≤ -60 dBc |
| Output Spurious Out Of Band | ≤ -50 dBc |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise 0.1Khz Offset Typ | -65 dBc/Hz |
| Phase Noise 1Khz Offset Typ | -75 dBc/Hz |
| Phase Noise 10Khz Offset Typ | -85 dBc/Hz |
| Phase Noise 100Khz Offset Typ | -95 dBc/Hz |
| Phase Noise 10Khz Offset Typ | -85 dBc/Hz |
| Phase Noise 1Khz Offset Typ | -75 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Input Power | via IFL |
| Power Consumption | 80W max. |
| Power Requirements | +18 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| M And C Interface | No M&C Function |
| RF Output Connector | CPR137G |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 100% condensing |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +55°C |

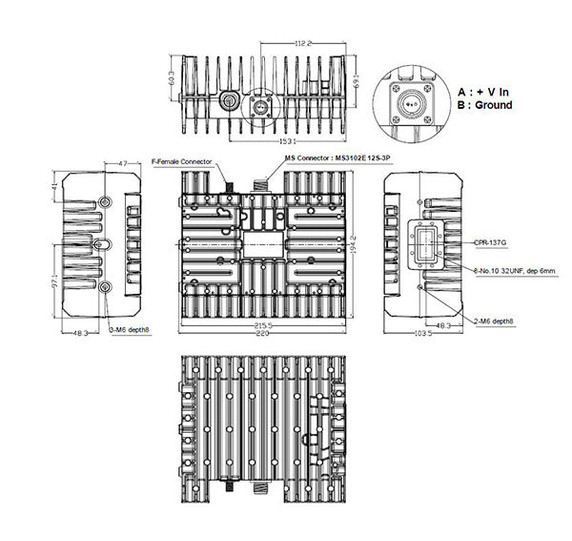

| PHYSICAL SPECIFICATIONS | |
| Enclosed Accessories | Screws, Gasket |
| Internal Function | Lock detector shuts off Tx in case of LO unlocked |
| Product Height | 103.5 mm |
| Product Length | 220 mm |
| Product Weight | 4.5 kg |
| Product Width | 194.2 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Korea |
| Harmonized System Code | 8543700000 |
| Unit Package Weight AC | 6.5 kg |
| Unit Package Weight DC | 5.0 kg |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | C-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 1150 - 1450 MHz |
| LO Frequency 1 | 5.275 GHz |
| Output Frequency Band 1 | 6.425 - 6.725 GHz |
| Output Power Rated | 10W |
| RF SPECIFICATIONS | |
| Gain Flatness (40Mhz) | ≤ 1.5 dB p-p |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p |
| Gain Flatness (Over Temperature) | ≤ 4.0 dB p-p |
| Input VSWR | 2.0 : 1 max. |
| Linear Gain Typ | 65 dB |
| Output P1db | +40 dBm min. over temperature |
| Output Spurious In Band | ≤ -60 dBc |
| Output Spurious Out Of Band | ≤ -50 dBc |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise 0.1Khz Offset Typ | -65 dBc/Hz |
| Phase Noise 1Khz Offset Typ | -75 dBc/Hz |
| Phase Noise 10Khz Offset Typ | -85 dBc/Hz |
| Phase Noise 100Khz Offset Typ | -95 dBc/Hz |
| Phase Noise 10Khz Offset Typ | -85 dBc/Hz |
| Phase Noise 1Khz Offset Typ | -75 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Input Power | via IFL |
| Power Consumption | 80W max. |
| Power Requirements | +18 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| M And C Interface | No M&C Function |
| RF Output Connector | CPR137G |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 100% condensing |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +55°C |
| PHYSICAL SPECIFICATIONS | |
| Enclosed Accessories | Screws, Gasket |
| Internal Function | Lock detector shuts off Tx in case of LO unlocked |
| Product Height | 103.5 mm |
| Product Length | 220 mm |
| Product Weight | 4.5 kg |
| Product Width | 194.2 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Korea |
| Harmonized System Code | 8543700000 |
| Unit Package Weight AC | 6.5 kg |
| Unit Package Weight DC | 5.0 kg |
