Norsat International Inc.

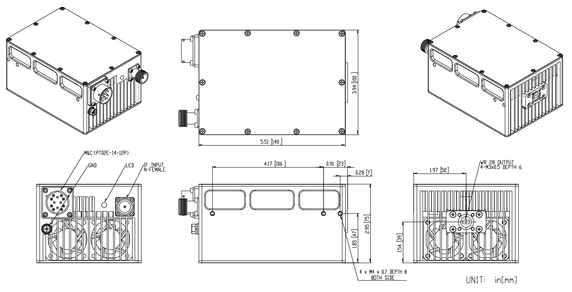

Norsat BUC-100492 10W Ka-Band BUC
Product Code:
BUC-100492
Condition:
New
Availability:
10 - 12 Weeks
Weight:
1.20 KGS
Width:
10.00
(cm)
Height:
7.50
(cm)
Depth:
14.00
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Ref Freq | 10 MHz, -5 to +5 dBm |
| Input Frequency Band 1 | 950 - 1950 MHz |
| LO Frequency 1 | 28.05 GHz |
| Output Frequency Band 1 | 29.00 - 30.00 GHz |
| Output Power Rated | 10 W |
| RF SPECIFICATIONS | |
| Gain Adjust Range | 20 dB (Step: 0.25 dB) |
| Gain Flatness (Over 1000Mhz) | 4 dB p-p |
| Gain Flatness (Over 36Mhz) | 1 dB p-p |
| Gain Flatness (Over 500Mhz) | 3 dB p-p |
| Gain Stability | 3 dB p-p |
| IMD3 | -25 dBc (3 dB from rated) |
| Input VSWR | 2 : 1 |
| Linear Power Plin | 39 dBm min. (-26 dBc regrowth, 1.5 SR, commercial satellite) 38 dBm min. (-30 dBc regrowth, 1.0 SR, MIL-STD-188-164B, one-carrier) 37 dBm min. (≤-25 dBc IMD3) |
| Output Power Psat | 40 dBm min. |
| Output Spurious | -55 dBc |
| Output VSWR | 1.3 : 1 |
| Phase Noise 0.1Khz Offset Max | -63 dBc/Hz |
| Phase Noise 1Khz Offset Max | -73 dBc/Hz |
| Phase Noise 10Khz Offset Max | -83 dBc/Hz |
| Phase Noise 100Khz Offset Max | -93 dBc/Hz |
| Small Signal Gain | 70 dB |
| ELECTRICAL SPECIFICATIONS | |
| Power Connector | PT02E-14-12P (4 pins for Power Supply) |
| Power Consumption Plin | 55 W |
| Power Consumption Psat | 70 W |
| Power Requirements | +18 to +55 VDC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector Female |
| LED Alarm Indicator | Green On: Normal Red On: PLL alarm |
| M And C Connector | PT02E-12-14P (8 pins for M&C) |
| M And C Interface | RS-422 & Ethernet |
| RF Output Connector | WR-28 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Altitude | 0 - 10,000 feet ASL |
| Humidity | 0 - 100% condensing |
| Temperature Operational | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 0.075 m |
| Product Length | 0.14 m |
| Product Weight | 1.2 kg |
| Product Width | 0.1 m |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Ref Freq | 10 MHz, -5 to +5 dBm |
| Input Frequency Band 1 | 950 - 1950 MHz |
| LO Frequency 1 | 28.05 GHz |
| Output Frequency Band 1 | 29.00 - 30.00 GHz |
| Output Power Rated | 10 W |
| RF SPECIFICATIONS | |
| Gain Adjust Range | 20 dB (Step: 0.25 dB) |
| Gain Flatness (Over 1000Mhz) | 4 dB p-p |
| Gain Flatness (Over 36Mhz) | 1 dB p-p |
| Gain Flatness (Over 500Mhz) | 3 dB p-p |
| Gain Stability | 3 dB p-p |
| IMD3 | -25 dBc (3 dB from rated) |
| Input VSWR | 2 : 1 |
| Linear Power Plin | 39 dBm min. (-26 dBc regrowth, 1.5 SR, commercial satellite) 38 dBm min. (-30 dBc regrowth, 1.0 SR, MIL-STD-188-164B, one-carrier) 37 dBm min. (≤-25 dBc IMD3) |
| Output Power Psat | 40 dBm min. |
| Output Spurious | -55 dBc |
| Output VSWR | 1.3 : 1 |
| Phase Noise 0.1Khz Offset Max | -63 dBc/Hz |
| Phase Noise 1Khz Offset Max | -73 dBc/Hz |
| Phase Noise 10Khz Offset Max | -83 dBc/Hz |
| Phase Noise 100Khz Offset Max | -93 dBc/Hz |
| Small Signal Gain | 70 dB |
| ELECTRICAL SPECIFICATIONS | |
| Power Connector | PT02E-14-12P (4 pins for Power Supply) |
| Power Consumption Plin | 55 W |
| Power Consumption Psat | 70 W |
| Power Requirements | +18 to +55 VDC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector Female |
| LED Alarm Indicator | Green On: Normal Red On: PLL alarm |
| M And C Connector | PT02E-12-14P (8 pins for M&C) |
| M And C Interface | RS-422 & Ethernet |
| RF Output Connector | WR-28 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Altitude | 0 - 10,000 feet ASL |
| Humidity | 0 - 100% condensing |
| Temperature Operational | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 0.075 m |
| Product Length | 0.14 m |
| Product Weight | 1.2 kg |
| Product Width | 0.1 m |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
