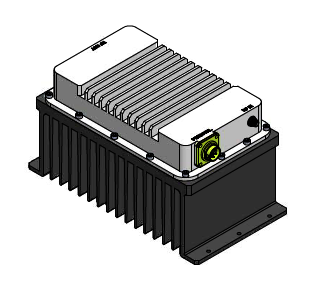

Norsat BUC-100489 30W S-Band GaN BUC with Heatsink
Product Code:
BUC-100489
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
Width:
11.43
(cm)
Height:
11.30
(cm)
Depth:
21.21
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Band | S-Band |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 2.0 - 2.6 GHz |
| Output Power Rated | 30W |
| RF SPECIFICATIONS | |
| 2Nd Harmonics | -20 dBc |
| 3Rd Harmonics | -18 dBc |
| Efficiency PAE | 45% |
| Gain | 54 dB typ. |
| Gain Flatness (Over Full Band) | 2.5 dB p-p max |
| Impedance Input | 50 Ohms |
| Impedance Output | 50 Ohms |
| Output 3Rd Order Intercept Point | +43 dBm typ. |
| Output Mismatch | 10:1 Max. |
| Output Power At 1Db Compression Point | +31 dBm typ. |
| Output Power Psat | 20W min. |
| VSWR | 1.9 : 1 max |
| ELECTRICAL SPECIFICATIONS | |
| Operating DC Current | 2.4A |
| Operating DC Voltage | 27-30V DC (+28V DC) |
| INTERFACE SPECIFICATIONS | |
| Bias Connector | Binder M16, 8 pins (Pinout 1-4: GND, 5-8: +28V) |
| Input Connector | SMA |
| Output Connector | SMA |
| ENVIRONMENTAL SPECIFICATIONS | |
| Altitude | MIL-STD-810F Method 5004 |
| Humidity | 95% Condensing |
| Temperature Operational | -40°C to +85°C |
| Temperature Storage | -55°C to +85°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 4.45 inch |
| Product Length | 8.35 inch |
| Product Width | 4.50 inch |
| Weight | 2.5kg |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in US |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
