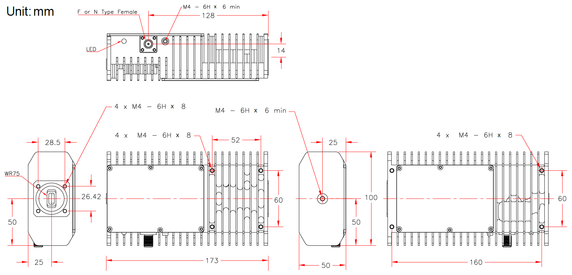

Norsat BUC-100479 8W Ku-Band BUC
Product Code:
BUC-100479
Condition:
New
Availability:
10 - 12 Weeks
Weight:
1.20 KGS
Width:
10.00
(cm)
Height:
5.00
(cm)
Depth:
17.30
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| External Ref Freq | 10 MHz, -5 to +5 dBm |
| Input Frequency Band 1 | 950 - 1700 MHz |
| LO Frequency 1 | 12.80 GHz |
| Output Frequency Band 1 | 13.75 - 14.50 GHz |
| Output Power Rated | 8W |
| Product Family | BUC |
| RF SPECIFICATIONS | |
| Gain Flatness (Over 36Mhz) | 1 dB p-p |
| Gain Flatness (Over 500Mhz) | 4 dB p-p |
| Gain Flatness (Over 750Mhz) | 5 dB p-p |
| Gain Stability | 4 dB p-p |
| IMD3 | -25 dBc (3 dB back off from P_rated) |
| Linear Gain | 60 dB |
| Linear Power Plin | 38 dBm (-26 dBc regrowth, 1.5 SR, commercial satellite) 37 dBm (-30 dBc regrowth, 1.0 SR, MIL-STD-188-164B, one-carrier) 36 dBm (≤25 dBc IMD3) |
| Noise Power Density | -144 dBm/Hz in Rx (10.70 - 12.75 GHz) |
| Output Power Psat | 39 dBm min. |
| Output Spurious | -55 dBc |
| Output VSWR | 2 : 1 max. |
| Phase Noise 100Hz Offset Max | -60 dBc/Hz |
| Phase Noise 10Khz Offset Max | -80 dBc/Hz |
| Phase Noise 1Khz Offset Max | -70 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Power Connector | Via IFL |
| Power Consumption | 60 W @ Rated Output |
| Power Requirements | +18 to +36V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector Female |
| LED Alarm Indicator | Green On: Normal Red On: PLL alarm |
| RF Output Connector | WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Altitude | 0 - 10,000 feet ASL |
| Humidity | 0 - 100% condensing |
| Temperature Operational | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 50 mm |
| Product Length | 173 mm |
| Product Weight | 1.2 kg |
| Product Width | 100 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Harmonized System Code | 8517690000 |
