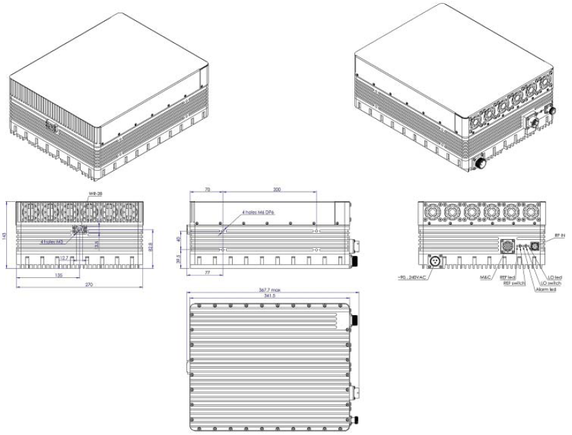

Norsat BUC-100476 100W Ka-Band BUC
Product Code:
BUC-100476
Condition:
New
Availability:
10 - 12 Weeks
Weight:
21.50 KGS
Width:
27.00
(cm)
Height:
14.30
(cm)
Depth:
34.20
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Ref Freq | 10 MHz, - 5 to + 5 dBm |
| Input Frequency Band 1 | 950 - 2450 MHz |
| LO Frequency 1 | 28.55 GHz |
| Output Frequency Band 1 | 29.5 - 31.0 GHz |
| Output Power Rated | 100W |
| Product Family | BUC |
| Reference Type | External Reference |
| RF SPECIFICATIONS | |
| Conversion Gain Typ | 72 dB |
| Gain Flatness (40Mhz) | ±0.5 dB max |
| Gain Flatness (Over Full Band) | ±1.8 dB max |
| Gain Flatness (Over Temperature) | ±1.5 dB typ., ±1.8 dB max |
| IMD3 | -25 dBc max. (two tones) 2 signals 5 MHz apart from PLin |
| Input VSWR | 1.5 : 1 max |
| Mute | Shut off the BUC if L.O. unlocked. |
| Noise Figure | 15 dB max. |
| Noise Power Density Rx | -150 dBm/Hz max. |
| Noise Power Density Tx | -60 dBm/Hz max. |
| Output Power Plin | +47.56 dBm min. |
| Output Power Psat | +50 dBm min. |
| Output VSWR | 1.5 : 1 max. |
| Phase Noise 100Hz Offset Max | -62 dBc/Hz |
| Phase Noise 100Khz Offset Max | -92 dBc/Hz |
| Phase Noise 10Hz Offset Max | -52 dBc/Hz |
| Phase Noise 10Khz Offset Max | -82 dBc/Hz |
| Phase Noise 1Khz Offset Max | -72 dBc/Hz |
| Phase Noise 1Mhz Offset Max | -102 dBc/Hz |
| Spectral Regrowth | -30 dBc (QPSK at 1.5x and OQPSK at 1.0x symbol rate offset with 2dB back-off from rated output power) |
| Spurious | -55 dBc max. |
| ELECTRICAL SPECIFICATIONS | |
| Input Power | via MS Connector |
| Power Consumption | 1100 W max |
| Power Requirements | +90 to +240 VAC |
| INTERFACE SPECIFICATIONS | |
| FSK | Multiplexed on Tx IFL, compatible with Comtech and Paradigm modems |
| Input Connector | N-Connector |
| M&C Interface | RS-232 and RS-485, Ethernet (HTTP and SNMP) |
| Output Connector | WR-28G |
| Status LED | Status LED RED: ALARM Status LED GREEN: SSPA OK Status LED GREEN BLINKING: SSPA MUTED L.O. GREEN: ALL OK L.O. 28.55 GHZ Status REF LED GREEN: EXTERNAL 10 MHZ DETECTED Status REF LED GREEN BLINKING: INTERNAL 10 MHZ Status REF LED RED: NO EXTERNAL REFERENCE |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP67 |
| Temperature Operational | -40°C to +55°C |
| Temperature Storage | -55°C to +85°C |
| Vibration And Shock | Complies with MIL-STD-810E |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 143 mm |
| Product Length | 342 mm |
| Product Weight | 21.5 kg |
| Product Width | 270 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in United States of America |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
