Norsat International Inc.

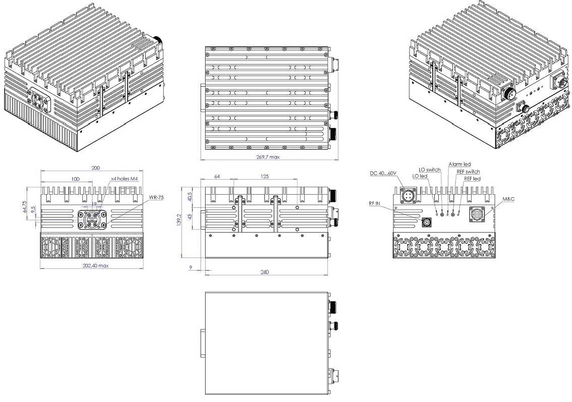

Norsat BUC-100474 300W Ku-Band GaN BUC
Product Code:
BUC-100474
Condition:
New
Availability:
10 - 12 Weeks
Weight:
8.50 KGS
Width:
20.24
(cm)
Height:
13.92
(cm)
Depth:
24.00
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| External Ref Freq | 10 MHz, -5 to +5 dBm |
| Frequency Sense | Non-Inverting |
| Input Frequency Band 1 | 950 - 1750 MHz |
| LO Frequency 1 | 12.80 GHz |
| LO Frequency 2 | 13.05 GHz |
| Noise Figure Max | 15 dB |
| Number Of Onboard Los | Dual-Band |
| Output Frequency Band 1 | 13.75 - 14.80 GHz |
| Output Power Rated | 300W |
| Reference Type | External |
| RF SPECIFICATIONS | |
| Conversion Gain Min | 68 dB |
| Conversion Gain Typ | 72 dB |
| Gain Flatness (40Mhz) | ± 0.5 dB |
| Gain Flatness (Over Full Band) | ± 1.8 dB |
| Gain Flatness (Over Temperature) | ± 1.5 dB typ., ± 1.8 dB max. |
| Input VSWR | 1.5 : 1 max. |
| LO Leakage | -45 dBm max. |
| Output Noise Power Density Rx | -125 dBm/Hz max. |
| Output Noise Power Density Tx | -80 dBm/Hz max. |
| Output Psat | +54.8 dBm min. |
| Output VSWR | 1.5 : 1 max. |
| Phase Noise 100Hz Offset Max | -65 dBc/Hz (Exceeds Intelsat’s standard IESS308/309) |
| Phase Noise 10Hz Offset Max | -55 dBc/Hz (Exceeds Intelsat’s standard IESS308/309) |
| Phase Noise 1Khz Offset Max | -75 dBc/Hz (Exceeds Intelsat’s standard IESS308/309) |
| Phase Noise 1Mhz Offset Max | -115 dBc/Hz (Exceeds Intelsat’s standard IESS308/309) |
| Spectral Regrowth | -30 dBc (QPSK at 1.5x and OQPSK at 1.0x symbol rate offset with 2dB back-off from rated output power) |
| Spurious | -50 dBc max. |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | 1675 W max. |
| Power Requirements | 196 to 265 VAC via MS connector |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| M And C Interface | RS-232, RS-485, Ethernet (HTTP and SNMP) |
| Mute | Shut off the HPA if L.O. unlocked |
| RF Connector | WR-75G waveguide grooved |
| Status LED | Status LED: - RED: Summary Alarm - GREEN: OK - GREEN BLINKING: MUTE L.O.: - GREEN: All OK standard L.O. 13.05 GHz - GREEN BLINKING: All OK extended L.O. 12.80 GHz Status REF LED: - GREEN: External 10 MHz reference - GREEN BLINKING: Internal 10 MHz reference - RED: No 10 MHz reference detected |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP67 |
| Shock And Vibration | Complies with MIL-STD-810E |
| Temperature Operational | -40°C to +55°C |
| Temperature Storage | -55°C to +85°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 139.2 mm |
| Product Length | 240 mm |
| Product Weight | 8.5 kg |
| Product Width | 202.4 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in United States of America |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
