Norsat International Inc.
Norsat BUC-100466 250W S-Band GaN SSPA
Product Code:
BUC-100466
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
Width:
24.89
(cm)
Height:
23.93
(cm)
Depth:
46.99
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Band | S-Band |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 2.0 - 2.3 GHz |
| Output Power Rated | 250W |
| Product Family | MEDIAN |
| RF SPECIFICATIONS | |
| AM-PM Conversion | < 1 deg/dB @ Plin < 2.5 deg/dB @ Psat |
| Attenuator Range | 20 dB variable in 0.1 dB steps |
| Gain | 65 dB min |
| Gain Flatness (10Mhz) | 0.5 dB p-p max |
| Gain Flatness (Over Full Band) | 2.5 dB p-p max |
| Gain Flatness (Over Temperature) | ±1.5 dB max. |
| Gain Slope | 0.06 dB/MHz max. |
| Group Delay Linear | 0.02 ns/MHz max. |
| Group Delay Parabolic | 0.003 ns/MHz² max. |
| Group Delay Ripple | 1 ns p-p max. |
| Harmonics | -60 dBc @ Pin |
| IMD3 | -25 dBc @ Plin (2-tones 5 MHz apart) |
| Input VSWR | 1.5 : 1 |
| Output Noise Power Density Tx | < -80 dBm/Hz |
| Output Power Plin | +50 dBm min. |
| Output Power Psat | +54 dBm typ. |
| Output VSWR | 1.3 : 1 max |
| Phase Noise 0.01Khz Offset Max | -60 dBc/Hz |
| Phase Noise 0.1Khz Offset Max | -90 dBc/Hz |
| Phase Noise 10000Khz Offset Max | -130 dBc/Hz |
| Phase Noise 1000Khz Offset Max | -125 dBc/Hz |
| Residual AM Noise | 0 – 10 kHz: -45 dBc 10 kHz – 500 kHz: -20 (1.25 + log(F)) dBc, F = Frequency in kHz 500 kHz – 1 MHz: -80 dBc |
| Spurious | -60 dBc max. @ Plin |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | 1100W nom. |
| Power Requirements | 90 - 265 VAC |
| Power Supply | AC Powered |
| INTERFACE SPECIFICATIONS | |
| Input Connector | N-Connector |
| Output Connector | N-Connector |
| Ports | Output Sample Port: N-Connector AC Line: MS3102 type M&C: MS3112E14-19P Ethernet Port: RJ45 Outdoor |
| ENVIRONMENTAL SPECIFICATIONS | |
| Altitude | 10,000 ft AMSL, derated by 2°C/1000ft from AMSL |
| Humidity | 100% Condensing |
| Temperature Operational | -30°C to +55°C |
| Temperature Storage | -55°C to +85°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 9.42 inch |
| Product Length | 18.50 inch |
| Product Width | 9.80 inch |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | S-Band |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 2.0 - 2.3 GHz |
| Output Power Rated | 250W |
| Product Family | MEDIAN |
| RF SPECIFICATIONS | |
| AM-PM Conversion | < 1 deg/dB @ Plin < 2.5 deg/dB @ Psat |
| Attenuator Range | 20 dB variable in 0.1 dB steps |
| Gain | 65 dB min |
| Gain Flatness (10Mhz) | 0.5 dB p-p max |
| Gain Flatness (Over Full Band) | 2.5 dB p-p max |
| Gain Flatness (Over Temperature) | ±1.5 dB max. |
| Gain Slope | 0.06 dB/MHz max. |
| Group Delay Linear | 0.02 ns/MHz max. |
| Group Delay Parabolic | 0.003 ns/MHz² max. |
| Group Delay Ripple | 1 ns p-p max. |
| Harmonics | -60 dBc @ Pin |
| IMD3 | -25 dBc @ Plin (2-tones 5 MHz apart) |
| Input VSWR | 1.5 : 1 |
| Output Noise Power Density Tx | < -80 dBm/Hz |
| Output Power Plin | +50 dBm min. |
| Output Power Psat | +54 dBm typ. |
| Output VSWR | 1.3 : 1 max |
| Phase Noise 0.01Khz Offset Max | -60 dBc/Hz |
| Phase Noise 0.1Khz Offset Max | -90 dBc/Hz |
| Phase Noise 10000Khz Offset Max | -130 dBc/Hz |
| Phase Noise 1000Khz Offset Max | -125 dBc/Hz |
| Residual AM Noise | 0 – 10 kHz: -45 dBc 10 kHz – 500 kHz: -20 (1.25 + log(F)) dBc, F = Frequency in kHz 500 kHz – 1 MHz: -80 dBc |
| Spurious | -60 dBc max. @ Plin |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | 1100W nom. |
| Power Requirements | 90 - 265 VAC |
| Power Supply | AC Powered |
| INTERFACE SPECIFICATIONS | |
| Input Connector | N-Connector |
| Output Connector | N-Connector |
| Ports | Output Sample Port: N-Connector AC Line: MS3102 type M&C: MS3112E14-19P Ethernet Port: RJ45 Outdoor |
| ENVIRONMENTAL SPECIFICATIONS | |
| Altitude | 10,000 ft AMSL, derated by 2°C/1000ft from AMSL |
| Humidity | 100% Condensing |
| Temperature Operational | -30°C to +55°C |
| Temperature Storage | -55°C to +85°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 9.42 inch |
| Product Length | 18.50 inch |
| Product Width | 9.80 inch |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |

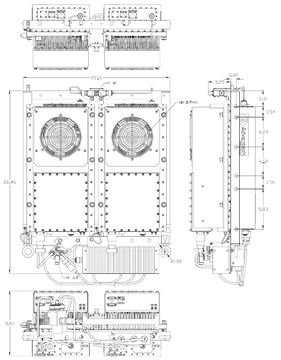

Related Products
