Norsat International Inc.

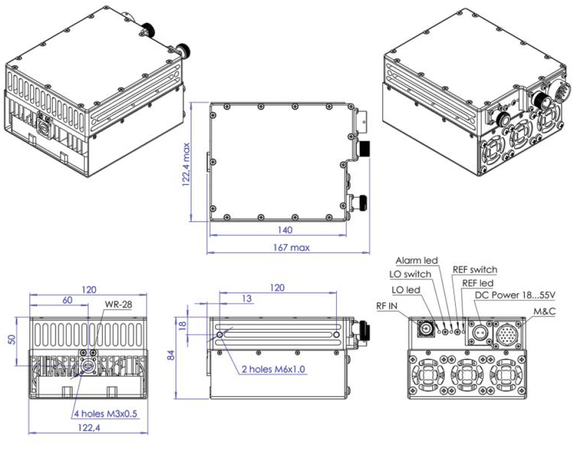

Norsat BUC-100395 20W Ka-Band BUC
Product Code:
BUC-100395
Condition:
New
Availability:
10 - 12 Weeks
Weight:
2.20 KGS
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Ref Freq | 10 MHz, - 5 to + 5 dBm |
| Input Frequency Band 1 | 950 - 1950 MHz |
| LO Frequency 1 | 26.55 GHz |
| LO Frequency 2 | 27.40 GHz |
| LO Frequency 3 | 28.05 GHz |
| LO Frequency 4 | 29.05 GHz |
| LO Switching | Electronically and Manually Switchable |
| Output Frequency Band 1 | 27.5 - 31.0 GHz |
| Output Power Rated | 20W |
| Product Family | BUC |
| Reference Type | External Reference |
| RF SPECIFICATIONS | |
| Conversion Gain Min | 60 dB |
| Conversion Gain Typ | 65 dB |
| Gain Flatness (40Mhz) | ±0.5 dB |
| Gain Flatness (Over Full Band) | ±1.8 dB |
| Gain Flatness (Over Temperature) | ±1.5 dB typ., ±1.8 dB max |
| IMD3 | -25 dBc max (two tones) 2 signals 5 MHz apart at PLin |
| Input VSWR | 1.5 : 1 max |
| Mute | Shut off the BUC if L.O. unlocked. |
| Noise Figure | 15 dB max. |
| Noise Power Density Rx | -157 dBm/Hz max. |
| Noise Power Density Tx | -66 dBm/Hz max. |
| Output Power Psat | +43 dBm min. |
| Output VSWR | 1.5 : 1 max. |
| Phase Noise 0.01Khz Offset Max | -55 dBc/Hz |
| Phase Noise 0.1Khz Offset Max | -65 dBc/Hz |
| Phase Noise 1Khz Offset Max | -78 dBc/Hz |
| Phase Noise 10Khz Offset Max | -85 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| Phase Noise 1000Khz Offset Max | -115 dBc/Hz |
| Spectral Regrowth | -30 dBc (QPSK at 1.5x and OQPSK at 1.0x symbol rate offset with 2dB back-off from rated output power) |
| Spurious | -50 dBc max. |
| ELECTRICAL SPECIFICATIONS | |
| Input Power | Auto-Ranging via MS-Connector |
| Power Consumption | 260 W max |
| Power Requirements | +36 to +60V DC |
| INTERFACE SPECIFICATIONS | |
| FSK | Multiplexed on Tx IFL, compatible with Comtech and Paradigm modems |
| Input Connector | N-Connector |
| M&C Interface | RS-232 and RS-485, Ethernet (HTTP and SNMP) |
| Output Connector | WR-28G |
| Status LED | Status LED RED: ALARM |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP67 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -55°C to +85°C |
| Vibration And Shock | Complies with MIL-STD-810E |
| PHYSICAL SPECIFICATIONS | |
| Product Dimensions (Lxwxh) | 140 x 122.4 x 84 mm |
| Product Weight | 2.2 kg max. |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in United States of America |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
