Norsat International Inc.
Norsat BUC-100289 40W Low Ku-Band
Product Code:
BUC-100289
Condition:
New
Availability:
10 - 12 Weeks
Weight:
1.40 KGS
Width:
9.40
(cm)
Height:
7.40
(cm)
Depth:
15.20
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| LO Frequency | 11.80 GHz |
| LO Stability | ± 0.1 ppm |
| Operating IF Frequency | 950 - 1450 MHz |
| Operating RF Frequency | 12.75 - 13.25 GHz |
| Output Power Rated | 40W |
| RF SPECIFICATIONS | |
| AM/PM Conversion | 1.0˚/dB max. at 3 dB output backoff |
| Gain Flatness | ± 0.75 dB max. over 40 MHz |
| Gain Variation 50 Mhz | ± 0.5 dB |
| Gain Variation 500 Mhz | ± 1.5 dB |
| Group Delay | Ripple 1 nsec point to point max. |
| Imd3 | -25 dBc max. two tones, 3 dB back off, 2 signal 5 MHz apart at PLIN |
| Input VSWR | 1.5 : 1 |
| Linear Gain | 64 dB (min), 68 dB (typ.) |
| Noise Power Density | -85 dBm/Hz in Tx -155 dBm/Hz in Rx (10.7 - 11.7 GHz) |
| Output Power Plin | 45 dbm |
| Output Power Psat | 46 dBm |
| Output VSWR | 1.3 : 1 |
| Phase Noise 0.01Khz Offset Max | -55 dBc/Hz |
| Phase Noise 0.1Khz Offset Max | -65 dBc/Hz |
| Phase Noise 1Khz Offset Max | -75 dBc/Hz |
| Phase Noise 10Khz Offset Max | -85 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| Receive Reject Filter | Suppression by +60 dB (min) |
| Spectral Regrowth | -30 dBc at PLIN (QPSK at 1.5x and OQPSK at 1.0x symbol rate offset with 2 dB backoff from rated power) |
| Spurious | In-Band: ≤ -60 dBc max. Out-Band: ≤ -60 dBc max. |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | 190W @ PSAT 155W @ PLIN |
| Power Requirements | +18 to +55V DC |
| INTERFACE SPECIFICATIONS | |
| Alarms | PLL LOCK, HPA, VSWR, MUTE, TX |
| IF Connector | N-type (50 Ohm) |
| M And C Interface | Ethernet |

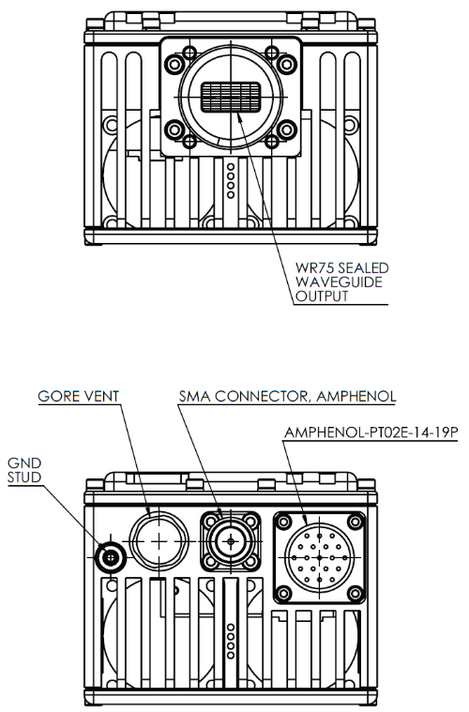

| Output Interface | WR-75 grooved |
| Stealth Plin Operation Mode | LED Shut-Off | Silenced fans |
| ENVIRONMENTAL SPECIFICATIONS | |
| Altitude | 50,000 ft, 15,240 m |
| Enviromental | Compliant with MIL-STD810E |
| Humidity | 100% condensing |
| IP Rating | IP67 |
| Shock | 20 g peak, 11 msec, 1/2 sine |
| Temperature Operational | -40°C to +70°C |
| Temperature Storage | -60°C to + 85°C |
| Vibration | MIL-STD810F, Method 514.5 |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 74 mm |
| Product Length | 152 mm |
| Product Weight | 1.4 kg |
| Product Width | 94 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.00 |
| Aluminium COO | CN |
| Aluminium Total Value | 0.00 |
| Country Of Origin | Made in United States of America |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
