Norsat International Inc.
Norsat BUC-100284 40W Low Ku-Band BUC
Product Code:
BUC-100284
Condition:
New
Availability:
10 - 12 Weeks
Weight:
1.80 KGS
Width:
12.00
(cm)
Height:
9.04
(cm)
Depth:
12.00
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to + 5 dBm |
| Input Frequency Band 1 | 950 - 1700 MHz |
| LO Frequency 1 | 11.80 GHz and 12.05 GHz |
| Output Frequency Band 1 | 12.75 - 13.50 GHz |
| Output Power Rated | 40W |
| RF SPECIFICATIONS | |
| Gain Flatness (Over Temperature) | ± 1.5 dB typ., 1.8 dB max |
| Gain Variation (Over 40Mhz) | ± 0.5 dB |
| Gain Variation (Over Full Band) | ± 1.8 dB |
| IMD3 | -26 dBc max two tones 2 signal 5 MHz apart at P-LINEAR |
| Input VSWR | 1.5 : 1 max |
| Linear Gain | 67 dB min, 70 dB nominal. |
| LO Leakage | -45 dBm max |
| Noise Figure | 20 dB max. |
| Noise Power Density Rx | -125 dBm/Hz max. |
| Noise Power Density Tx | -80 dBm/Hz max. |
| Output Power Plin | +43.6 dBm min. |
| Output Power Psat | +46 dBm min., +46.6 dBm typ. |
| Output VSWR | 1.5 : 1 max. |
| Phase Noise 0.01Khz Offset Max | -55 dBc/Hz max |
| Phase Noise 0.1Khz Offset Max | -65 dBc/Hz max |
| Phase Noise 1Khz Offset Max | -75 dBc/Hz max |
| Phase Noise 10Khz Offset Max | -85 dBc/Hz max |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz max |
| Phase Noise 1000Khz Offset Max | -115 dBc/Hz max |
| Spectral Regrowth | -30 dBc (QPSK at 1.5x and OQPSK at 1.0x symbol rate off set with 2dB back-off from rated output power) |
| Spurious | -50 dBc max. |
| ELECTRICAL SPECIFICATIONS | |
| Input Power | via IFL Cable |
| Power Consumption | 192 W max |
| Power Requirements | +30 to +60V DC |
| INTERFACE SPECIFICATIONS | |
| Input Connector | N Connector |
| Led Indicators | Amplifier:
L.O.
10MHz
|
| M And C | RS-232 and RS-485, Ethernet (HTTP and SNMP ver.3) |
| Mute | Shut off the BUC if L.O. unlocked. |
| Output Connector | WR-75G |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP67 |
| Temperature Operational | -40°C to +55°C |
| Temperature Storage | -55°C to +85°C |
| Vibration And Shock | Complies with MIL-STD-810E |

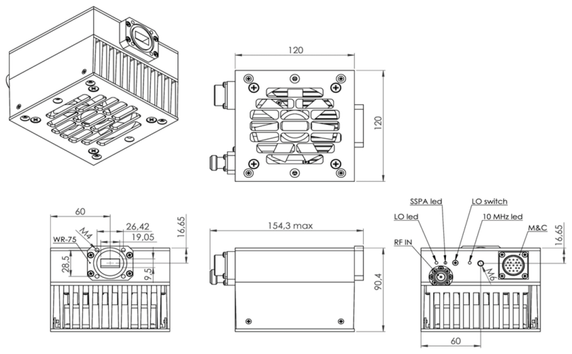

| PHYSICAL SPECIFICATIONS | |
| Product Height | 90.4 mm |
| Product Length | 120 mm |
| Product Weight | 1.8 kg |
| Product Width | 120 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in United States of America |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
5 customers are viewing this product
