Norsat International Inc.
Norsat BUC-100270 10W X-Band BUC-100270
Product Code:
BUC-100270
Condition:
New
Availability:
10 - 12 Weeks
Weight:
3.80 KGS
Width:
15.00
(cm)
Height:
9.70
(cm)
Depth:
22.35
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Band | X-Band |
| External Ref Freq | 10 MHz, -5 to +5 dBm |
| Input Frequency Band | 950 - 1450 MHz |
| IO Frequency Band | 6.95 GHz |
| Output Frequency Band | 7.90-8.40 GHz |
| Output Power | 10W |
| Product Family | BUC |
| RF SPECIFICATIONS | |
| External Reference Phase Noise 1Khz Offset Max | -140 dBc/Hz |
| Gain | 65dB typ @0dB attenuation |
| Gain Control | Δ15dB (50 to 65dB), 1dB step |
| Gain Flatness | ± 1.0 dB in any 36MHz ± 2.5 dB over full band |
| Gain Stability Over Temp | ± 2.5 dB at any const. frequency |
| Input Return Loss | 10dB min |
| Output P1db | +40 dBm min. |
| Output Return Loss | 12dB min |
| Output Spurious In Band | -60 dBc |
| Output Spurious Out Band | -50 dBc |
| Phase Noise 0.1Khz Offset Max | -60dBc/Hz |
| Phase Noise 1Khz Offset Max | -73dBc/Hz |
| Phase Noise 10Khz Offset Max | -83dBc/Hz |
| Phase Noise 100Khz Offset Max | -93dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | 90W max |
| Power Requirements | +22 to +27 VDC supplied through MS connector |
| INTERFACE SPECIFICATIONS | |
| Input Interface | N-female (50Ω) |
| M And C Connector | MS3112E14-12P_(12-pin) |
| M And C Interface | Ethernet or RS232 through MS3112E14-12P connector - Temperature - LO status - Output power mute - Gain control - Firmware upgradable |
| Output Interface | CPR-112G |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0-95 % |
| Temperature Operational | -40 to +55°C |

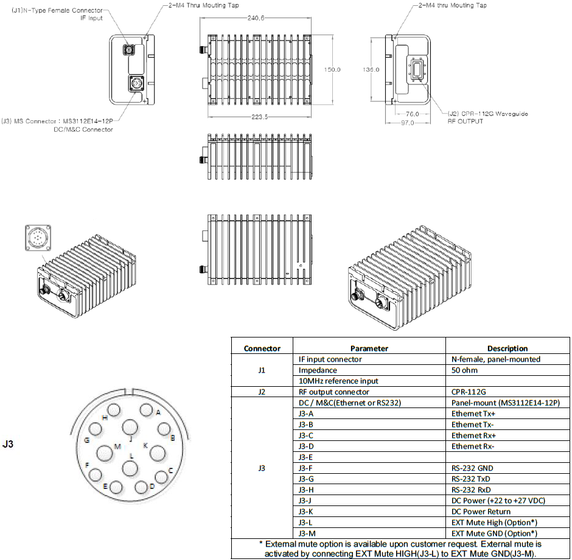

| PHYSICAL SPECIFICATIONS | |
| Product Height | 97.0 mm |
| Product Length | 223.5 mm |
| Product Weight | 3.8 kg |
| Product Width | 150.0 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Harmonized System Code | 8517690000 |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | X-Band |
| External Ref Freq | 10 MHz, -5 to +5 dBm |
| Input Frequency Band | 950 - 1450 MHz |
| IO Frequency Band | 6.95 GHz |
| Output Frequency Band | 7.90-8.40 GHz |
| Output Power | 10W |
| Product Family | BUC |
| RF SPECIFICATIONS | |
| External Reference Phase Noise 1Khz Offset Max | -140 dBc/Hz |
| Gain | 65dB typ @0dB attenuation |
| Gain Control | Δ15dB (50 to 65dB), 1dB step |
| Gain Flatness | ± 1.0 dB in any 36MHz ± 2.5 dB over full band |
| Gain Stability Over Temp | ± 2.5 dB at any const. frequency |
| Input Return Loss | 10dB min |
| Output P1db | +40 dBm min. |
| Output Return Loss | 12dB min |
| Output Spurious In Band | -60 dBc |
| Output Spurious Out Band | -50 dBc |
| Phase Noise 0.1Khz Offset Max | -60dBc/Hz |
| Phase Noise 1Khz Offset Max | -73dBc/Hz |
| Phase Noise 10Khz Offset Max | -83dBc/Hz |
| Phase Noise 100Khz Offset Max | -93dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | 90W max |
| Power Requirements | +22 to +27 VDC supplied through MS connector |
| INTERFACE SPECIFICATIONS | |
| Input Interface | N-female (50Ω) |
| M And C Connector | MS3112E14-12P_(12-pin) |
| M And C Interface | Ethernet or RS232 through MS3112E14-12P connector - Temperature - LO status - Output power mute - Gain control - Firmware upgradable |
| Output Interface | CPR-112G |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0-95 % |
| Temperature Operational | -40 to +55°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 97.0 mm |
| Product Length | 223.5 mm |
| Product Weight | 3.8 kg |
| Product Width | 150.0 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Harmonized System Code | 8517690000 |
