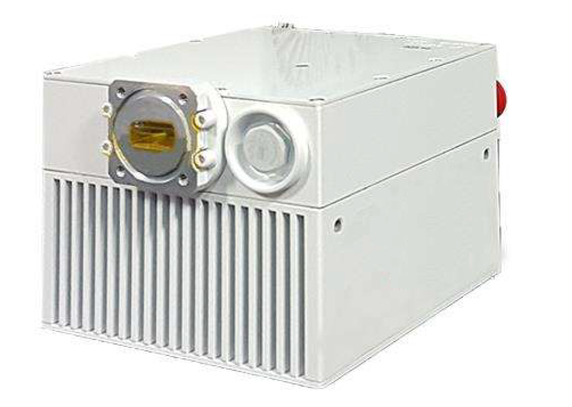

Norsat BUC-100245 10W Low Ku-Band BUC
Product Code:
BUC-100245
Condition:
New
Availability:
10 - 12 Weeks
Weight:
2.10 KGS
Width:
12.00
(cm)
Height:
10.20
(cm)
Depth:
12.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Band | Low Ku-Band |
| External Ref Freq | 10 MHz, - 5 to + 5 dBm |
| Input Frequency Band 1 | 950 - 1450 MHz |
| LO Frequency 1 | 11.80 GHz |
| Output Frequency Band 1 | 12.75 - 13.25 GHz |
| Output Power Rated | 10W |
| Reference Type | External Reference |
| RF SPECIFICATIONS | |
| Gain Control | 20 dB nominal in 0.5 dB steps |
| Gain Flatness (40Mhz) | ±0.5 dB |
| Gain Flatness (Over Full Band) | ±2.0 dB |
| Gain Flatness (Over Temperature) | ±1.5 dB nominal, ±2.0 dB max. |
| Input VSWR | 1.50 : 1 max |
| Intermodulation | -25 dBc, with 2 equal carriers at 3dB total power back off from rated power |
| Linear Gain | 65 dB nominal |
| Output Power | +40 dBm |
| Output Spurious | -55 dBc max. |
| Output VSWR | 1.20 : 1 max. |
| Phase Noise 0.1Khz Offset Max | -63 dBc/Hz |
| Phase Noise 100Khz Offset Max | -93 dBc/Hz |
| Phase Noise 1000Khz Offset Max | -103 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption | 90 W at Rated Power |
| Power Requirements | +20 to +72V DC |
| INTERFACE SPECIFICATIONS | |
| Input Connector | N-Connector |
| Output Connector | WR-75G |
| ENVIRONMENTAL SPECIFICATIONS | |
| Altitude | 10,000 ft ASL |
| Relative Humidity | 0 to 100% (condensing) |
| Temperature Operational | -40 to +55°C |
| Temperature Storage | -40 to +75°C |
| PHYSICAL SPECIFICATIONS | |
| Cooling | Forced Air |
| Product Height | 102 mm |
| Product Length | 120 mm |
| Product Weight | 2.1 kg |
| Product Width | 120 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
