Norsat International Inc.

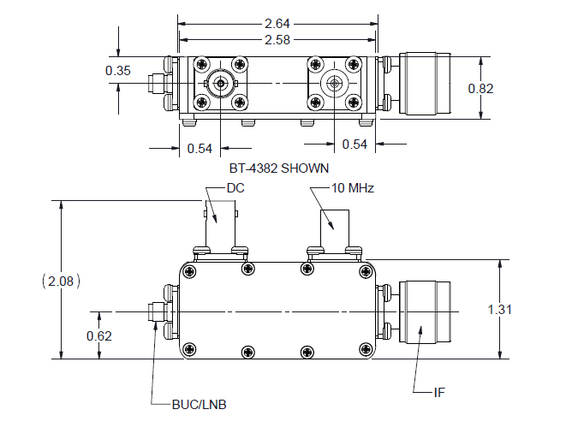

Norsat BT-4333M Bias Tee with Mounting Plate
Product Code:
BT-4333M
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.17 KGS
Width:
5.50
(cm)
Height:
2.50
(cm)
Depth:
10.50
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Band | L-Band |
| Pass Band | L-Band Pass Through: 950 - 1450 MHz |
| RF SPECIFICATIONS | |
| Input VSWR | L-Band Pass Through: 2.0 : 1 max. |
| Insertion Loss | 10 MHz Injection: 1 dB max. L-Band Pass Through: 7 dB max. with 50/75 ohms transformation |
| Output VSWR | L-Band Pass Through: 2.0 : 1 max. |
| Pass Band | 10 MHz Injection: 10 - 100 MHz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | DC Input: 2 A max. |
| DC Voltage Range | DC Input: 0V to 30V |
| INTERFACE SPECIFICATIONS | |
| 10 Mhz Injection | SMA (Female) - 50 Ohm |
| DC Connector | SMA (Female) - 50 Ohm |
| IF Connector | SMA (Female) - 50 Ohm |
| RF Connector | N (Male) - 50 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -30°C to +50°C |
| Temperature Storage | -40°C to +70˚C |
| PHYSICAL SPECIFICATIONS | |

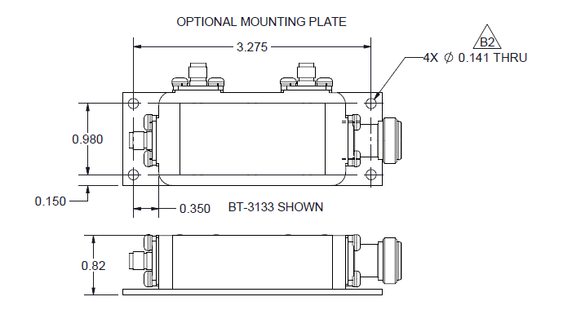

| Enclosed Accessories | Mounting Plate |
| Product Height | 25 mm |
| Product Length | 105 mm |
| Product Weight | 0.17 kg |
| Product Width | 55 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.085 kg |
| Aluminium COO | CN |
| Aluminium Total Value | $ 0.2125 |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 105 x 55 x 25 mm |
| Unit Package Height | 25 mm |
| Unit Package Length | 105 mm |
| Unit Package Width | 55 mm |
| Warranty | 1 year |
