Norsat International Inc.
Norsat BPF-L-1279-72-F L-Band Bandpass Filter
Product Code:

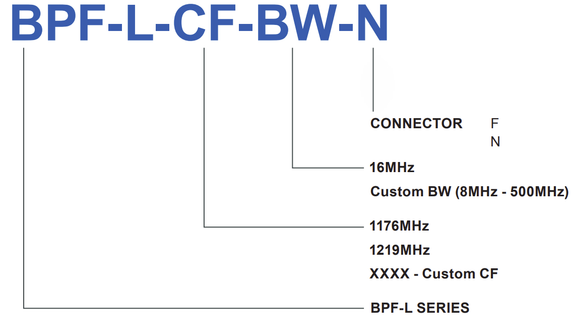

BPF-L-1279-72-F
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
$0.00
| KEY SPECIFICATIONS | |
| Band | L-Band |
| Center Frequency | 1279 MHz |
| Input Frequency Band 1 | 1243 - 1315 MHz |

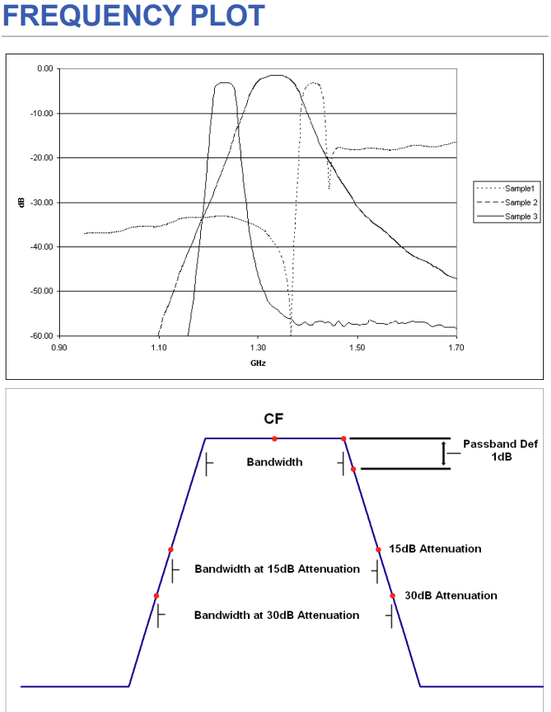

| Pass Band Definition | 1.0 dB |
| RF SPECIFICATIONS | |
| 10 Mhz Pass Insertion Loss | 1 dB max. |
| Bandwidth | 72 MHz |
| Insertion Loss In Band | 2 dB max. @ CF |
| Return Loss | 15 dB min |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 400 mA |
| Power Requirements | + 15 to + 24 VDC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -30°C to + 85°C |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517710000 |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | L-Band |
| Center Frequency | 1279 MHz |
| Input Frequency Band 1 | 1243 - 1315 MHz |
| Pass Band Definition | 1.0 dB |
| RF SPECIFICATIONS | |
| 10 Mhz Pass Insertion Loss | 1 dB max. |
| Bandwidth | 72 MHz |
| Insertion Loss In Band | 2 dB max. @ CF |
| Return Loss | 15 dB min |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 400 mA |
| Power Requirements | + 15 to + 24 VDC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -30°C to + 85°C |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517710000 |
| Warranty | 1 year |
