Norsat International Inc.
Norsat BPF-C-BW36-4055 C-Band 5G Bandpass Filter
Product Code:
BPF-C-BW36-4055
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.57 KGS
Width:
9.90
(cm)
Height:
7.10
(cm)
Depth:
12.00
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Center Frequency | 4055 MHz |
| Group Delay Variation Within 0.5Mhz | 1 nsec max. |
| Input Frequency Band 1 | 4.037 - 4.073 GHz |

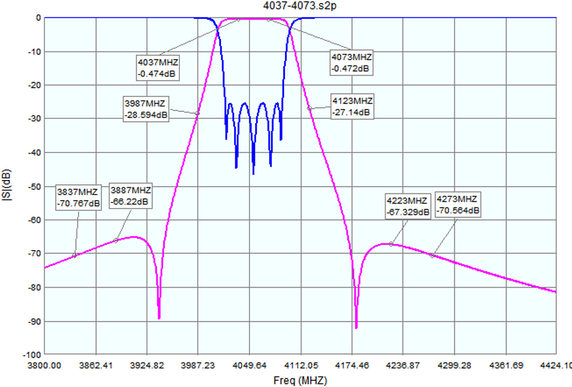

| Rejection | ≥70dB @3000-3837MHz; ≥60dB @3837-3887MHz; ≥25dB @3887-3987MHz; ≥25dB @4123-4223MHz; ≥60dB @4223-4273MHz; ≥70dB @4273-4800MHz |
| RF SPECIFICATIONS | |
| VSWR | 1.3 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Impedance | 50 Ω |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | CPR 229G waveguide grooved |
| RF Output Connector | CPR-229F |
| ENVIRONMENTAL SPECIFICATIONS | |
| Barometric Pressure | 55 KPa to 106 KPa |
| Humidity | 5% to 95% |
| IP Rating | IP67 |
| Temperature Operational | -20ºC to +60ºC |
| Temperature Storage | -40ºC to +85ºC |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 0.071 m |
| Product Length | 0.12 m |
| Product Weight | 0.57 kg |
| Product Width | 0.099 m |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Center Frequency | 4055 MHz |
| Group Delay Variation Within 0.5Mhz | 1 nsec max. |
| Input Frequency Band 1 | 4.037 - 4.073 GHz |
| Rejection | ≥70dB @3000-3837MHz; ≥60dB @3837-3887MHz; ≥25dB @3887-3987MHz; ≥25dB @4123-4223MHz; ≥60dB @4223-4273MHz; ≥70dB @4273-4800MHz |
| RF SPECIFICATIONS | |
| VSWR | 1.3 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Impedance | 50 Ω |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | CPR 229G waveguide grooved |
| RF Output Connector | CPR-229F |
| ENVIRONMENTAL SPECIFICATIONS | |
| Barometric Pressure | 55 KPa to 106 KPa |
| Humidity | 5% to 95% |
| IP Rating | IP67 |
| Temperature Operational | -20ºC to +60ºC |
| Temperature Storage | -40ºC to +85ºC |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 0.071 m |
| Product Length | 0.12 m |
| Product Weight | 0.57 kg |
| Product Width | 0.099 m |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
