Norsat International Inc.
Norsat BPF-C-BW36-3830 C-Band 5G Bandpass Filter
Product Code:
BPF-C-BW36-3830
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.57 KGS
Width:
9.90
(cm)
Height:
7.10
(cm)
Depth:
12.00
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Center Frequency | 3830 MHz |
| Group Delay Variation Within 0.5Mhz | 1 nsec max. |
| Input Frequency Band 1 | 3.812 - 3.848 GHz |

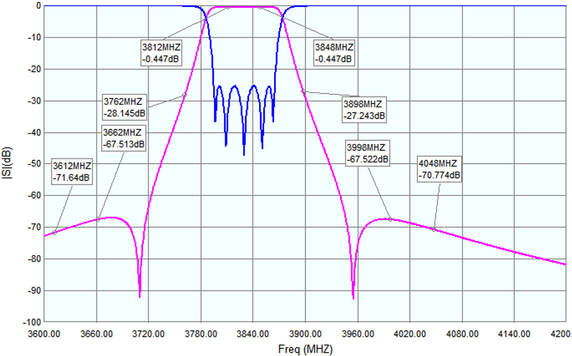

| Rejection | ≥70dB @3000-3612MHz ≥60dB @3612-3662MHz ≥25dB @3662-3762MHz ≥25dB @3898-3998MHz ≥60dB @3998-4048MHz ≥70dB @4048-4800MHz |
| RF SPECIFICATIONS | |
| VSWR | 1.3 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Impedance | 50 Ω |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | CPR 229G waveguide grooved |
| RF Output Connector | CPR-229F |
| ENVIRONMENTAL SPECIFICATIONS | |
| Barometric Pressure | 55 KPa to 106 KPa |
| Humidity | 5% to 95% |
| IP Rating | IP67 |
| Temperature Operational | -20ºC to +60ºC |
| Temperature Storage | -40ºC to +85ºC |

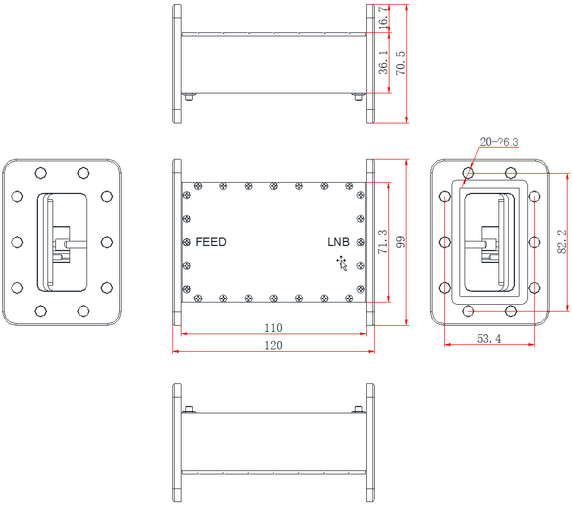

| PHYSICAL SPECIFICATIONS | |
| Product Height | 71 mm |
| Product Length | 120 mm |
| Product Weight | 0.57 kg |
| Product Width | 99 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Center Frequency | 3830 MHz |
| Group Delay Variation Within 0.5Mhz | 1 nsec max. |
| Input Frequency Band 1 | 3.812 - 3.848 GHz |
| Rejection | ≥70dB @3000-3612MHz ≥60dB @3612-3662MHz ≥25dB @3662-3762MHz ≥25dB @3898-3998MHz ≥60dB @3998-4048MHz ≥70dB @4048-4800MHz |
| RF SPECIFICATIONS | |
| VSWR | 1.3 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Impedance | 50 Ω |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | CPR 229G waveguide grooved |
| RF Output Connector | CPR-229F |
| ENVIRONMENTAL SPECIFICATIONS | |
| Barometric Pressure | 55 KPa to 106 KPa |
| Humidity | 5% to 95% |
| IP Rating | IP67 |
| Temperature Operational | -20ºC to +60ºC |
| Temperature Storage | -40ºC to +85ºC |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 71 mm |
| Product Length | 120 mm |
| Product Weight | 0.57 kg |
| Product Width | 99 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
