Norsat International Inc.
Norsat BPF-100148 Ku-Band Transmit Filter
Product Code:
BPF-100148
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.30 KGS
Width:
3.80
(cm)
Height:
3.80
(cm)
Depth:
7.50
(cm)
$0.00

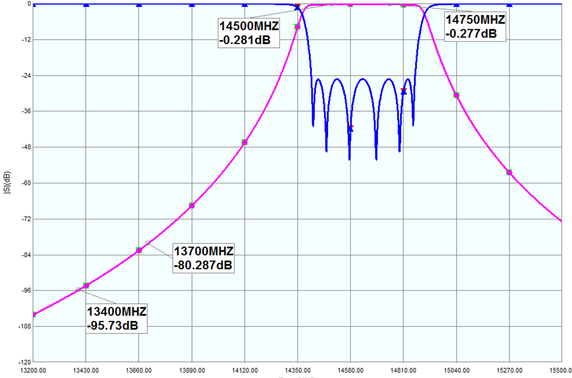

| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Frequency | 14.50 - 14.75 GHz |
| Rejection | 75dB min. at 13.4 to 13.7 GHz |
| RF SPECIFICATIONS | |
| Impedance | 50 Ω |
| Insertion Loss | 0.3 dB |
| VSWR | 1.25 : 1 max. |
| INTERFACE SPECIFICATIONS | |
| Flange 1 | WR-75 Grooved |
| Flange 2 | WR-75 Flat |
| ENVIRONMENTAL SPECIFICATIONS | |
| Barometric Pressure | 55 KPa - 106 KPa |
| Humidity | 5% to 95% |
| IP Rating | IP65 |
| Temperature Operational | 0 to +70°C |
| Temperature Storage | -40 to +85˚C |
| PHYSICAL SPECIFICATIONS | |
| Colour | White |
| Product Height | 38 mm |
| Product Length | 75 mm |
| Product Weight | 0.30 kg |
| Product Width | 38 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond |
| Harmonized System Code | 8517690000 |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Frequency | 14.50 - 14.75 GHz |
| Rejection | 75dB min. at 13.4 to 13.7 GHz |
| RF SPECIFICATIONS | |
| Impedance | 50 Ω |
| Insertion Loss | 0.3 dB |
| VSWR | 1.25 : 1 max. |
| INTERFACE SPECIFICATIONS | |
| Flange 1 | WR-75 Grooved |
| Flange 2 | WR-75 Flat |
| ENVIRONMENTAL SPECIFICATIONS | |
| Barometric Pressure | 55 KPa - 106 KPa |
| Humidity | 5% to 95% |
| IP Rating | IP65 |
| Temperature Operational | 0 to +70°C |
| Temperature Storage | -40 to +85˚C |
| PHYSICAL SPECIFICATIONS | |
| Colour | White |
| Product Height | 38 mm |
| Product Length | 75 mm |
| Product Weight | 0.30 kg |
| Product Width | 38 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | Richmond |
| Harmonized System Code | 8517690000 |
