Norsat International Inc.

Norsat BPF-100147 L Band Bandpass Filter

Name: Norsat BPF-100147 L Band Bandpass Filter
Brand: Norsat International Inc.
SKU: BPF-100147
Availability: InStock

No reviews yet

Product Code: BPF-100147

Condition: New

Availability: 10 - 12 Weeks

Weight: 0.40 KGS

Width: 8.00 (cm)

Height: 4.20 (cm)

Depth: 14.50 (cm)

$0.00

KEY SPECIFICATIONS
Band	L-Band

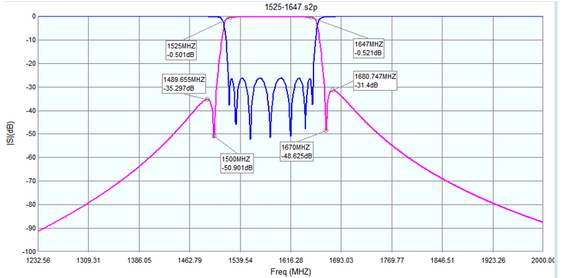

Frequency	1525MHz ~ 1647MHz (BW122MHz)
Rejection	≥30 dB at 1000-1500 MHz
Rejection 2	≥30 dB at 1670-1800 MHz
RF SPECIFICATIONS
Impedance	50 Ω
Input Average Power Per Port	50W
Insertion Loss	0.45 dB max. at Center Frequency
Insertion Loss 2	0.80 dB max. at 1525 - 1647 MHz
VSWR	1.3 : 1 max.
INTERFACE SPECIFICATIONS
RF Input Flange	N-Connector
RF Output Flange	N-Connector
ENVIRONMENTAL SPECIFICATIONS
Barometric Pressure	55 KPa - 106 KPa
Humidity	5% to 95%
Temperature Operational	-40 to +85°C
Temperature Storage	-40 to +85˚C
PHYSICAL SPECIFICATIONS
Product Height	42 mm
Product Length	145 mm
Product Weight	0.4 kg max.
Product Width	80 mm
ADDITIONAL INFORMATION
Country Of Origin	Made in China
ECCN Number	EAR99
Ex Works	Canada
Harmonized System Code	8517700000
