Norsat International Inc.
Norsat BPF-100145 C-Band 5G Bandpass Filter
Product Code:
BPF-100145
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.90 KGS
Width:
9.90
(cm)
Height:
7.05
(cm)
Depth:
17.16
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Group Delay Variation | 30 ns max. |

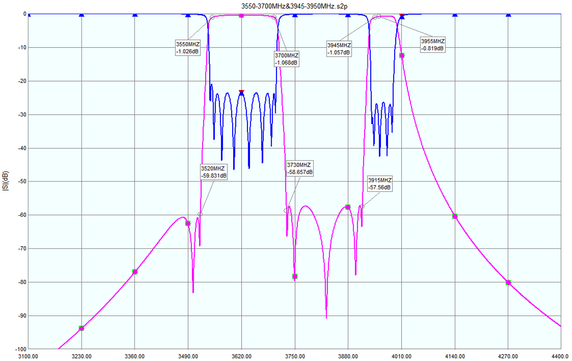

| Pass Band | 3550 - 3700 MHz & 3945 - 3955 MHz |
| Rejection | ≥55 dB at DC - 3520 MHz ≥55 dB at 3730 - 3915 MHz ≥55 dB at 5850 - 6725 MHz |
| RF SPECIFICATIONS | |
| Insertion Loss | 1.2 dB max. at band edges 0.3 dB at band center |
| Return Loss | ≥ 20dB |
| ELECTRICAL SPECIFICATIONS | |
| Impedance | 50 Ω |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | CPR 229G waveguide grooved |
| RF Output Connector | CPR-229F |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 5% to 95% |
| IP Rating | IP67 |
| Pressurization | 5 PSIG |
| Temperature Operational | -20ºC to +50ºC |
| Temperature Storage | -40ºC to +85ºC |

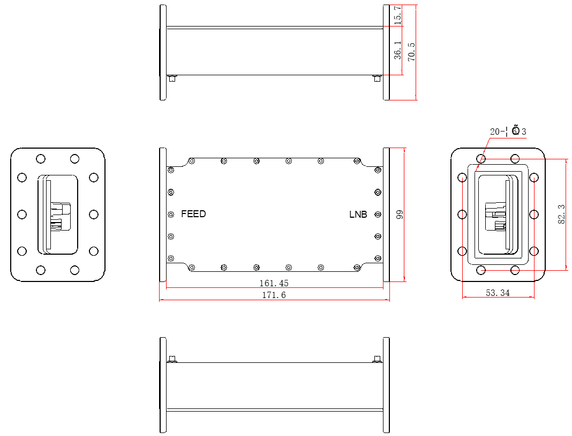

| PHYSICAL SPECIFICATIONS | |
| Product Height | 70.5 mm |
| Product Length | 171.6 mm |
| Product Weight | 0.9 kg |
| Product Width | 99 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | China |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Group Delay Variation | 30 ns max. |
| Pass Band | 3550 - 3700 MHz & 3945 - 3955 MHz |
| Rejection | ≥55 dB at DC - 3520 MHz ≥55 dB at 3730 - 3915 MHz ≥55 dB at 5850 - 6725 MHz |
| RF SPECIFICATIONS | |
| Insertion Loss | 1.2 dB max. at band edges 0.3 dB at band center |
| Return Loss | ≥ 20dB |
| ELECTRICAL SPECIFICATIONS | |
| Impedance | 50 Ω |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | CPR 229G waveguide grooved |
| RF Output Connector | CPR-229F |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 5% to 95% |
| IP Rating | IP67 |
| Pressurization | 5 PSIG |
| Temperature Operational | -20ºC to +50ºC |
| Temperature Storage | -40ºC to +85ºC |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 70.5 mm |
| Product Length | 171.6 mm |
| Product Weight | 0.9 kg |
| Product Width | 99 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in China |
| ECCN Number | EAR99 |
| Ex Works | China |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
