Norsat International Inc.

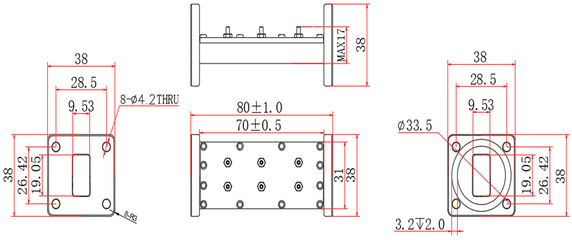

Norsat BPF-100144 Ku-Band Receive Filter
Product Code:
BPF-100144
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.30 KGS
Width:
3.80
(cm)
Height:
3.80
(cm)
Depth:
8.00
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Frequency | 13.40 - 13.70 GHz |
| Rejection | 75dB min. at 14.50 to 14.75 GHz |
| RF SPECIFICATIONS | |
| Impedance | 50 Ω |
| Insertion Loss | 0.3 dB |
| VSWR | 1.3 : 1 max. |
| INTERFACE SPECIFICATIONS | |
| Flange 1 | WR-75 Grooved |
| Flange 2 | WR-75 Flat |
| ENVIRONMENTAL SPECIFICATIONS | |
| Barometric Pressure | 55 KPa -106KPa |
| Humidity | 5% to 95% |
| IP Rating | IP65 |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -40 to +85˚C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 38 mm |
| Product Length | 80 mm |
| Product Weight | 0.30 kg |
| Product Width | 38 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Thailand |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Frequency | 13.40 - 13.70 GHz |
| Rejection | 75dB min. at 14.50 to 14.75 GHz |
| RF SPECIFICATIONS | |
| Impedance | 50 Ω |
| Insertion Loss | 0.3 dB |
| VSWR | 1.3 : 1 max. |
| INTERFACE SPECIFICATIONS | |
| Flange 1 | WR-75 Grooved |
| Flange 2 | WR-75 Flat |
| ENVIRONMENTAL SPECIFICATIONS | |
| Barometric Pressure | 55 KPa -106KPa |
| Humidity | 5% to 95% |
| IP Rating | IP65 |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -40 to +85˚C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 38 mm |
| Product Length | 80 mm |
| Product Weight | 0.30 kg |
| Product Width | 38 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Thailand |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
