Norsat International Inc.

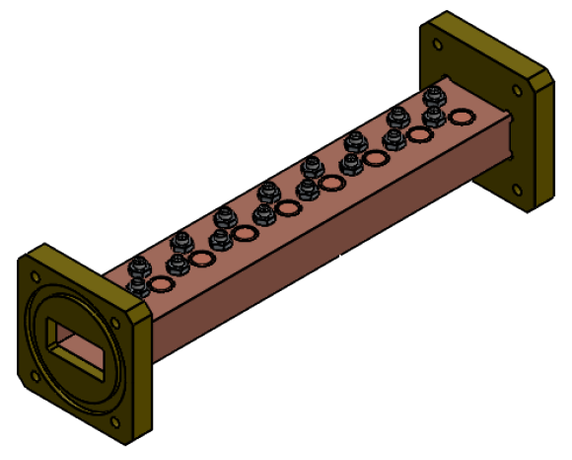

Norsat BPF-100141 Ku-Band Transmit Filter
Product Code:
BPF-100141
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.00 KGS
Width:
3.80
(cm)
Height:
3.80
(cm)
Depth:
14.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Frequency | 14.50 - 14.75 GHz |
| Rejection | 50dB min. at 13.40 to 13.65 GHz |
| RF SPECIFICATIONS | |
| Insertion Loss | 0.4 dB |
| Return Loss | 23 dB |
| INTERFACE SPECIFICATIONS | |
| Flange 1 | WR-75 Grooved Tapped |
| Flange 2 | WR-75 Flat Clear |
| ENVIRONMENTAL SPECIFICATIONS | |
| Pressure | 5 PSIG |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 38 mm |
| Product Length | 140 mm |
| Product Width | 38 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Frequency | 14.50 - 14.75 GHz |
| Rejection | 50dB min. at 13.40 to 13.65 GHz |
| RF SPECIFICATIONS | |
| Insertion Loss | 0.4 dB |
| Return Loss | 23 dB |
| INTERFACE SPECIFICATIONS | |
| Flange 1 | WR-75 Grooved Tapped |
| Flange 2 | WR-75 Flat Clear |
| ENVIRONMENTAL SPECIFICATIONS | |
| Pressure | 5 PSIG |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 38 mm |
| Product Length | 140 mm |
| Product Width | 38 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
